An-2

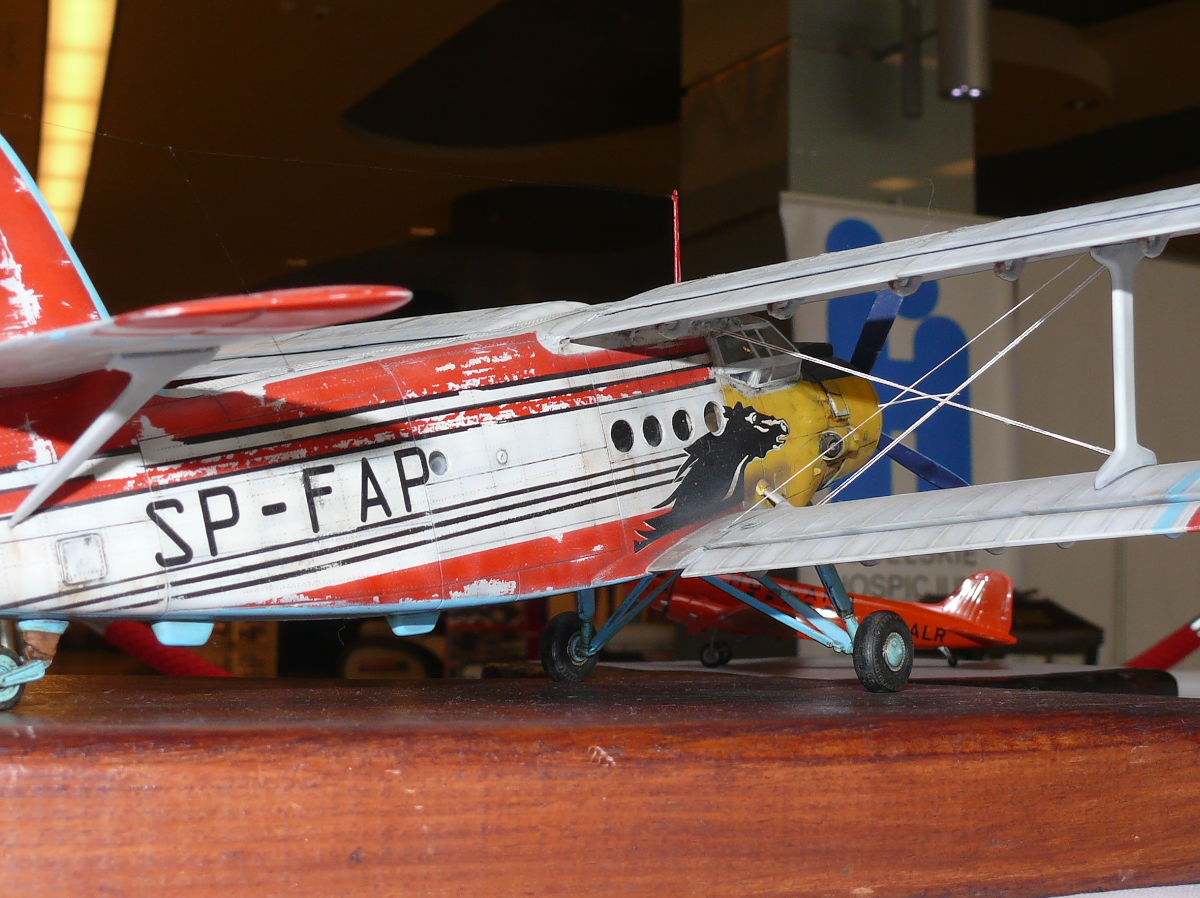

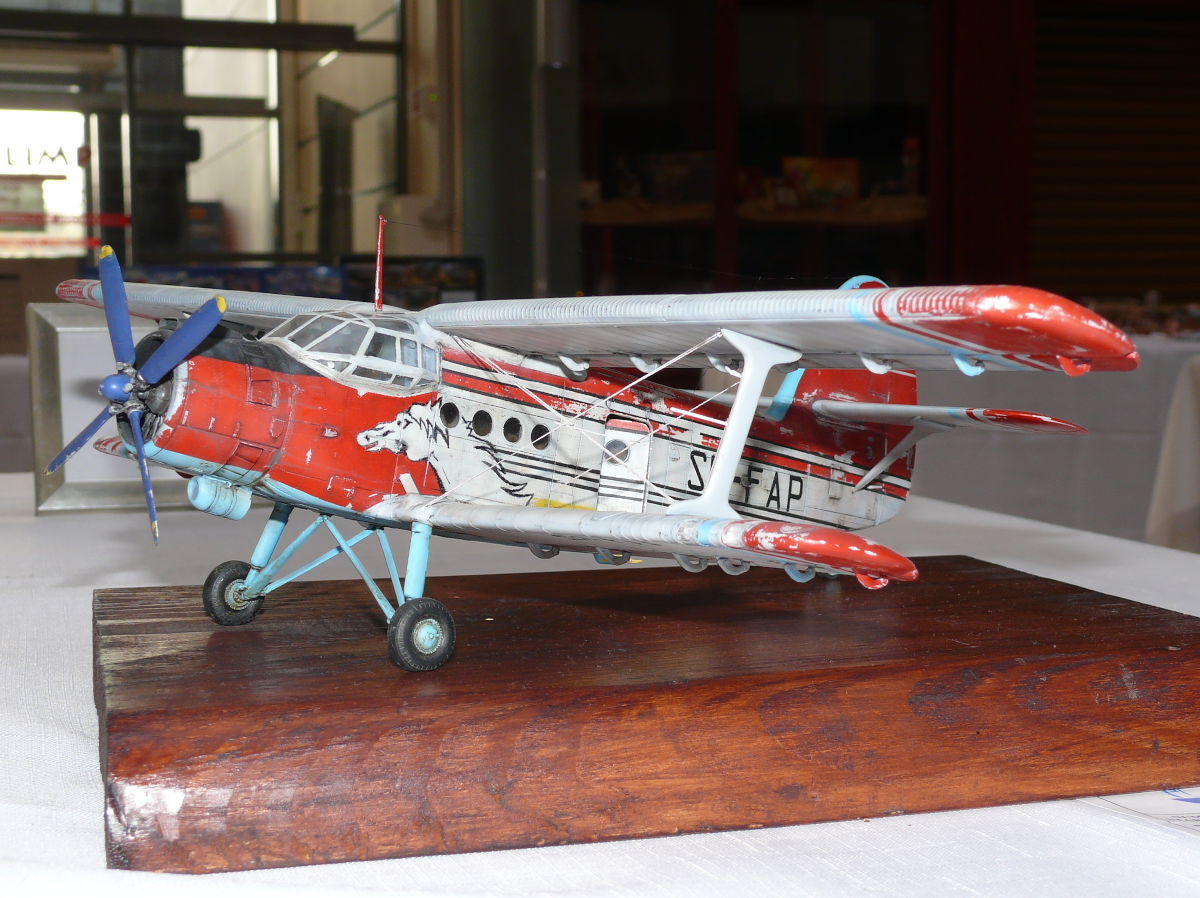

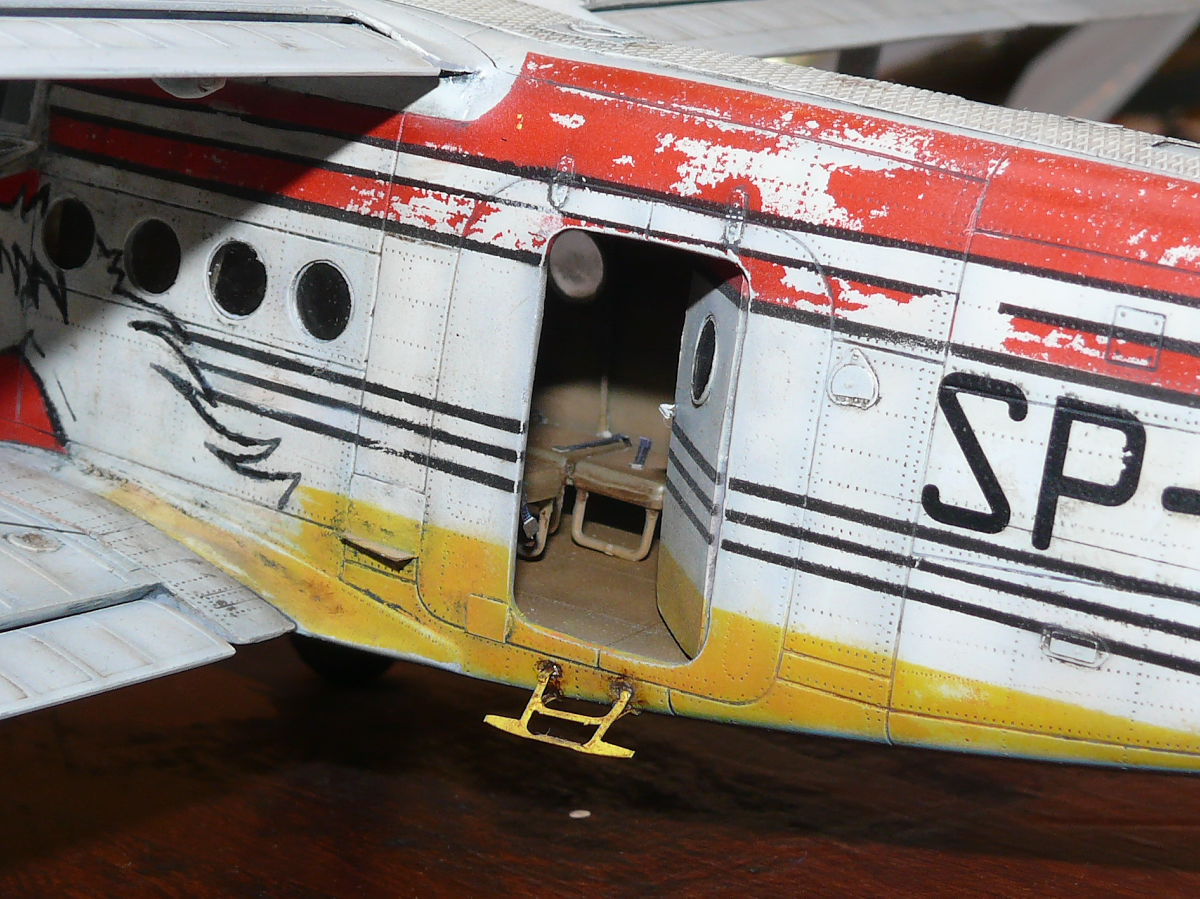

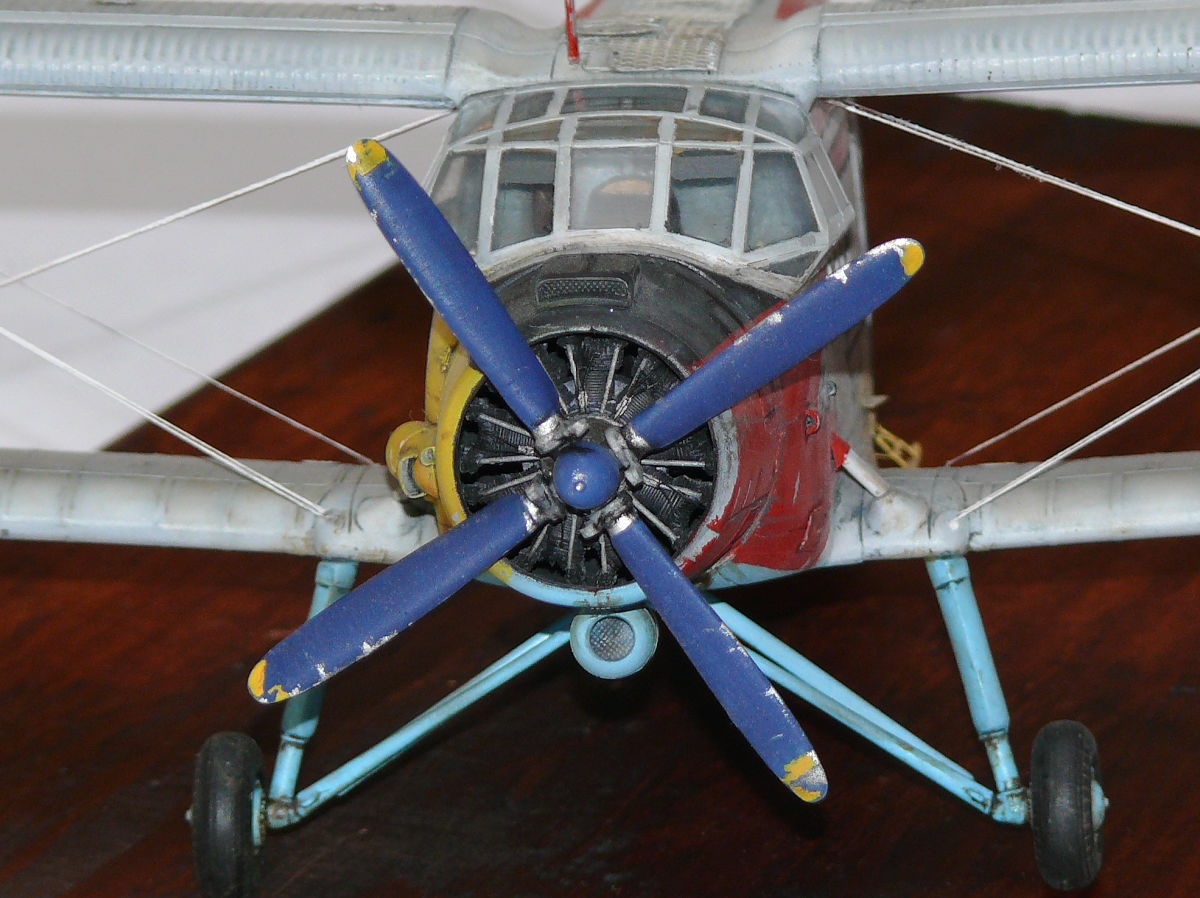

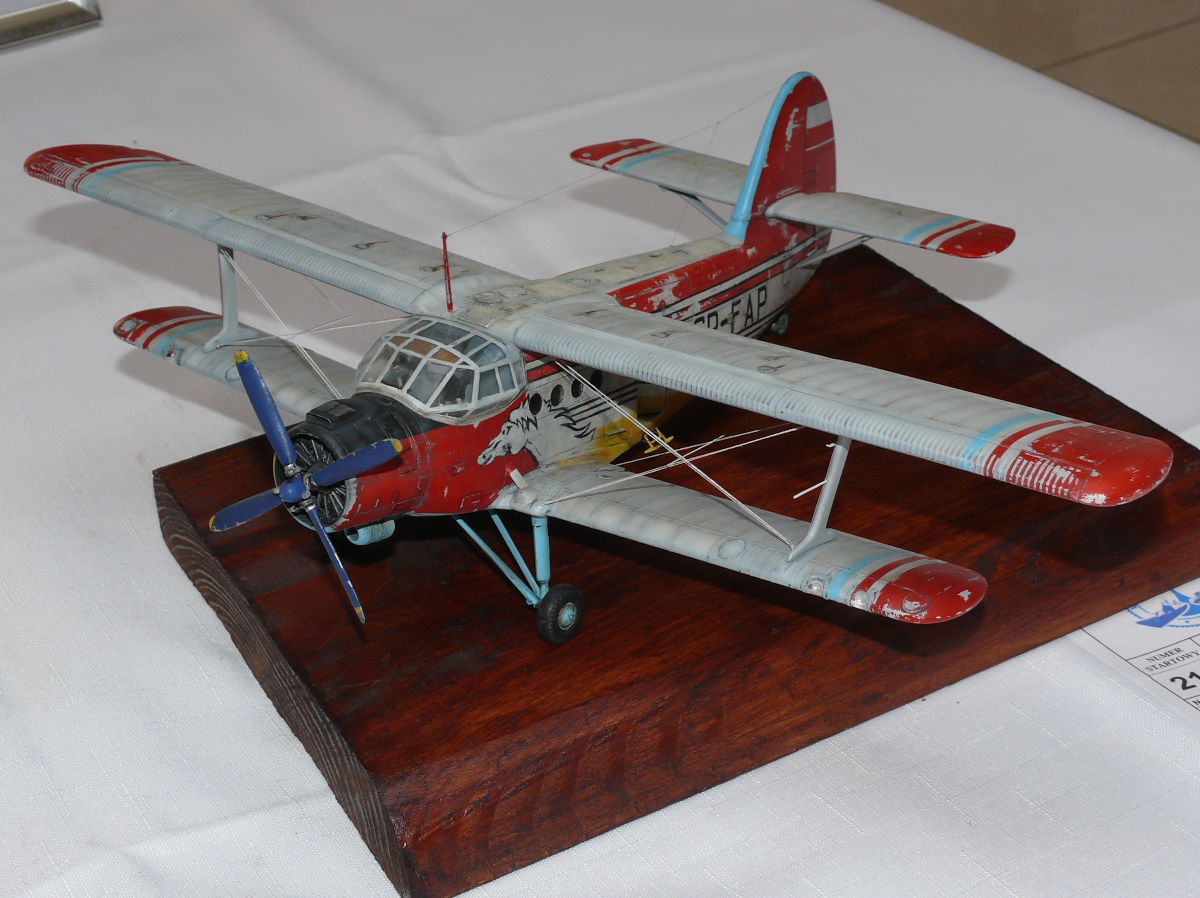

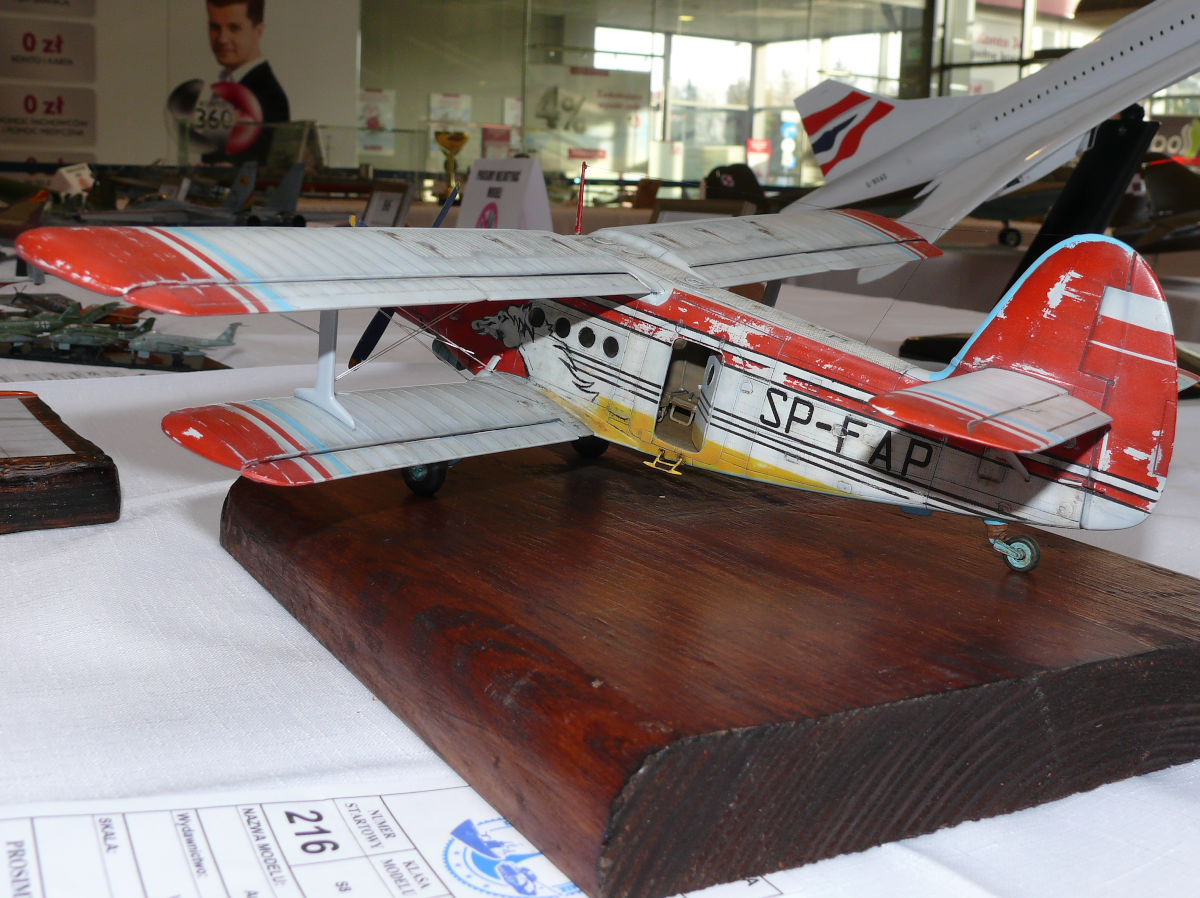

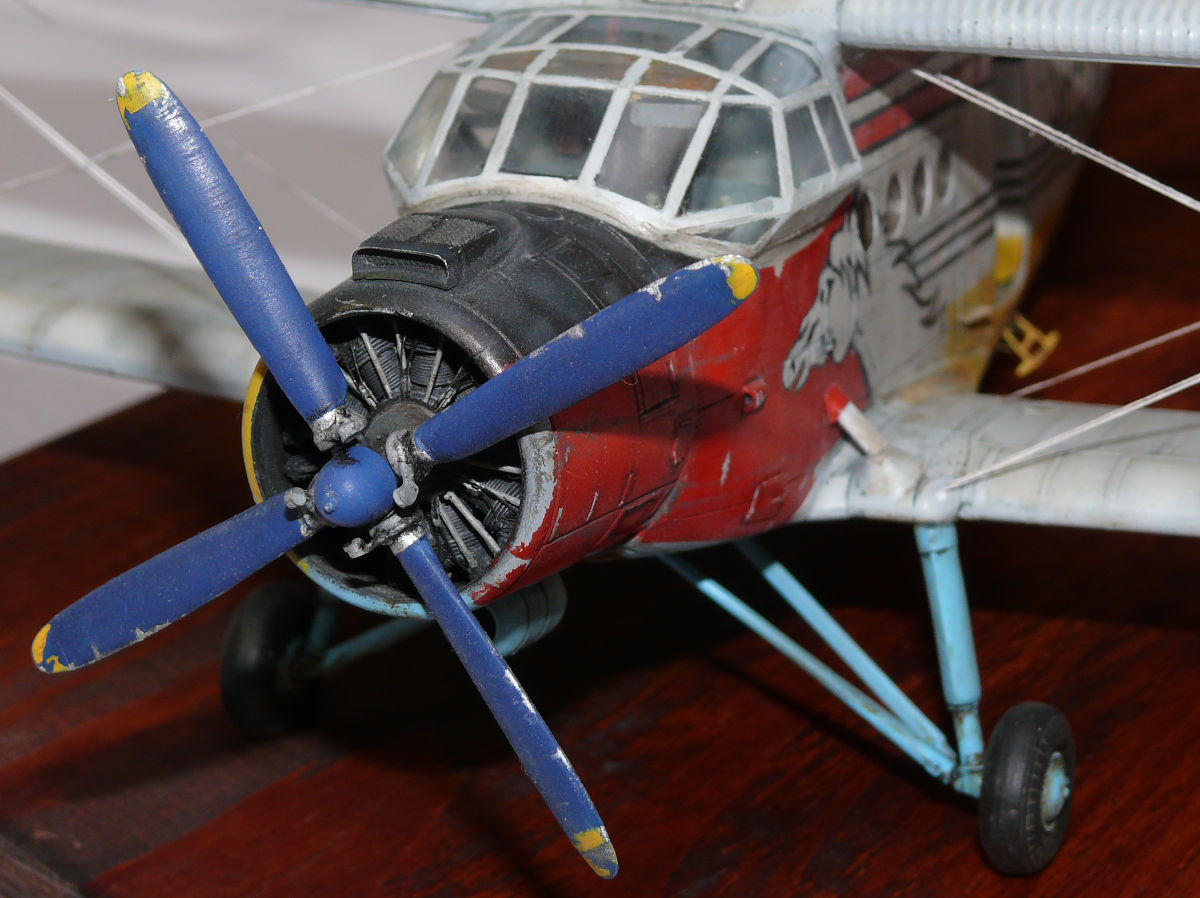

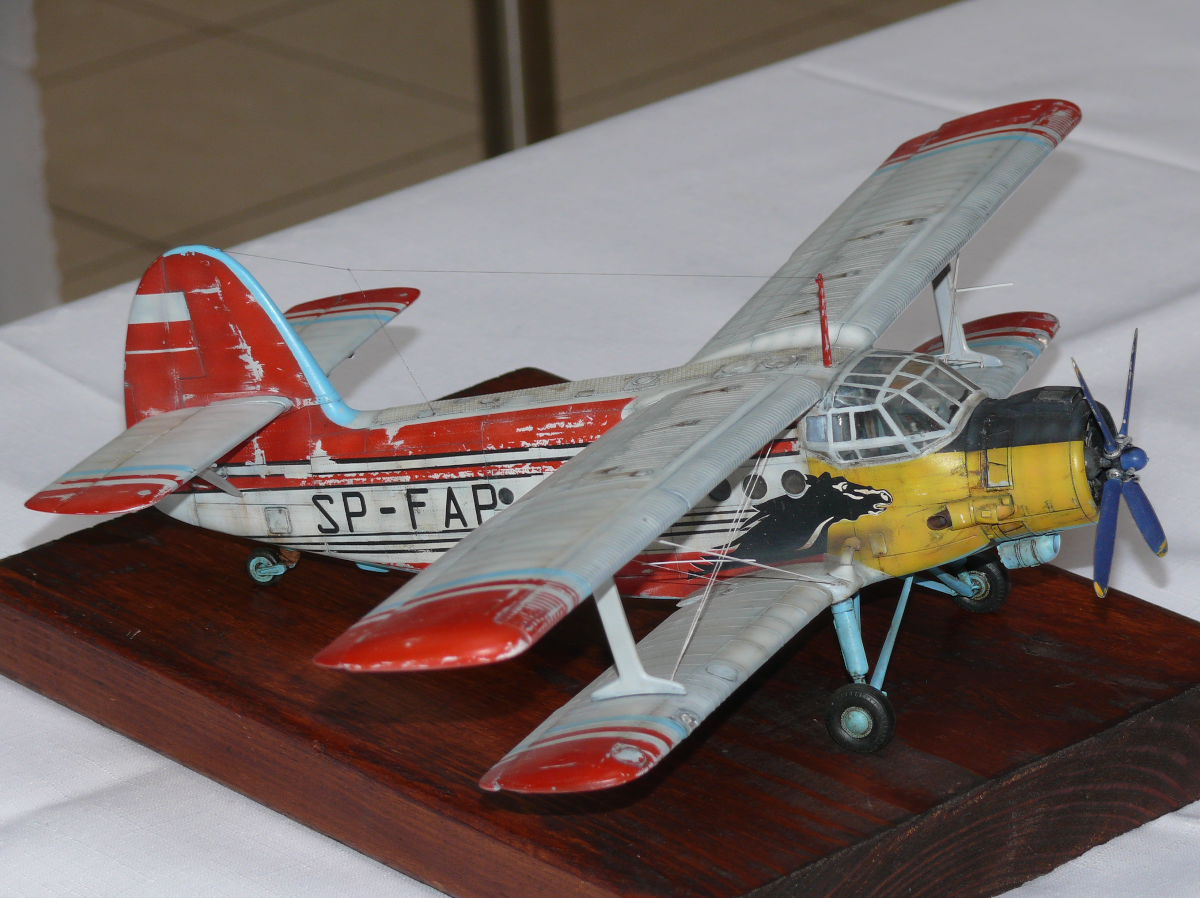

A plastic model of the An-2 plane was made in 1:48 scale. The work got a distinction at the 9th Lublin Model Meetings in 2014.

An-2 was a multi-role Soviet-designed biplane, called by the pilots "Antek", was produced in the years 1949-1996 in the USSR, China and Poland (from 1960 under license in Mielec, Poland). In 2002, 4 more units for Vietnam were manufactured in Mielec. A total of 16,515 copies were made. So far (2014) it was the world's largest mass-produced single-engine biplane.

The An-2 aircraft was a reliable, easy to pilot and serve plane used in agriculture, as well as in military and passenger aviation. The undoubted advantage that influenced the popularity of the aircraft is that it needed a small area of level ground for take-off and landing. In addition to the wheeled undercarriage, it was possible to use skis or floats with this plane.

Specifications:

• Length: 12.40 m (40.68 ft),
• Wingspan: 18.18 m (59.65 ft),
• Height: 4.10 m (13.45 ft),
• Wing area: 71.50 m² (769.6 ft²),
• Take-off weight: 5500 kg (12,125 lb),
• Service ceiling: 4400 m (14,436 ft),
• Range: 900 km (559 mi),
• Max speed: 258 km/h (160 mph),
• Rate of climb: 3.5 m/s (689 fpm),
• Powerplant: 9-cylinder piston radial engine (ASz-62IR),
• Engine displacement: 29.911 liters (1825.3 in³),
• Engine power: 736 kW (1000 HP),
• Fuel consumption: około 200 litrów na godzinę (UK-45 gal, USA-52.8 gal),
• Fuel tank capacity: 1200 liters (UK-267 gal, USA-317 gal),
• Take-off run: 170 m (557.7 ft),
• Landing distance: 215 m (705.4 ft),
• Crew: 2.

Sources:

• http://www.muzeumlotnictwa.pl/5705/strony/opis.htm
• https://pl.wikipedia.org/wiki/An-2
• http://www.samolotypolskie.pl/samoloty/325/126/Antonow-An-2-Kolchoznik2

See other model of the An-2 plane in the Gallery

01 Nov 2014
