Eurocopter EC135

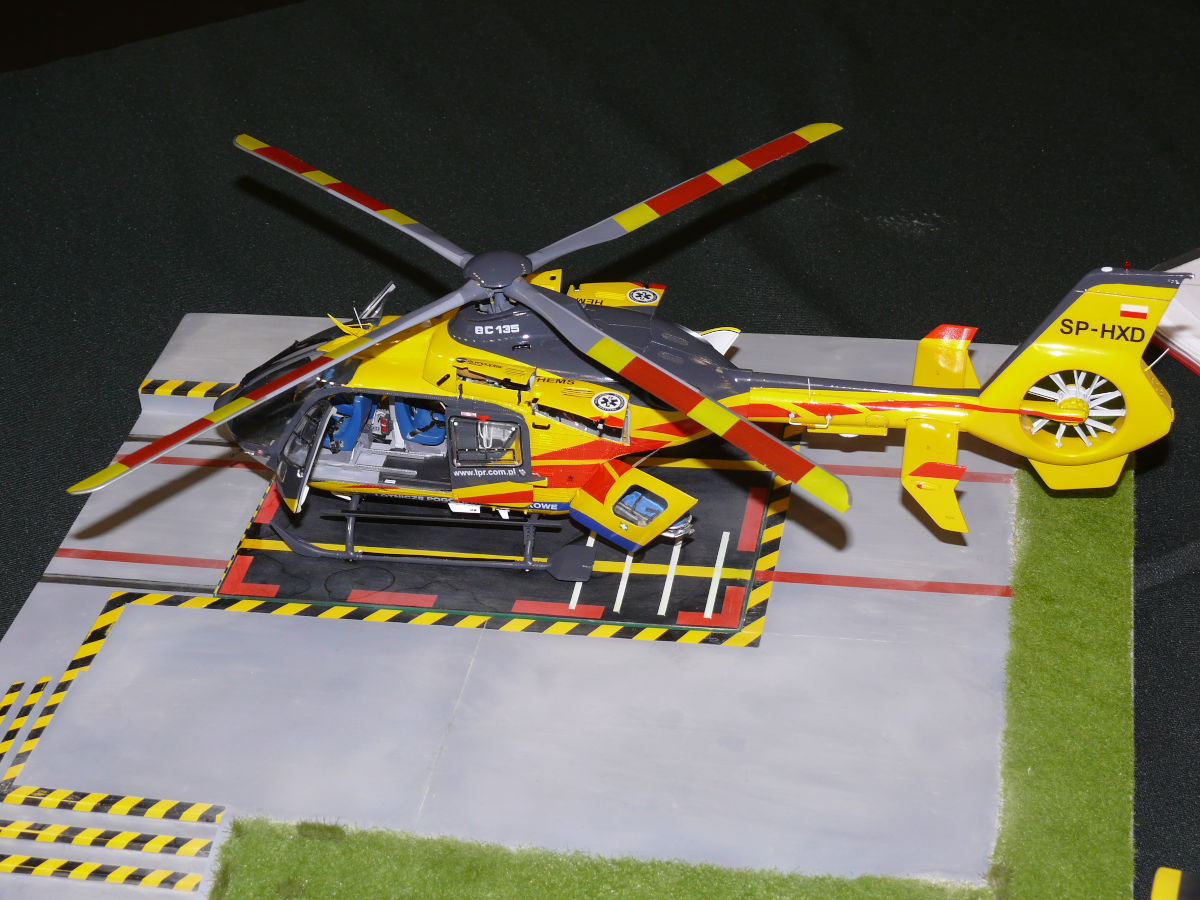

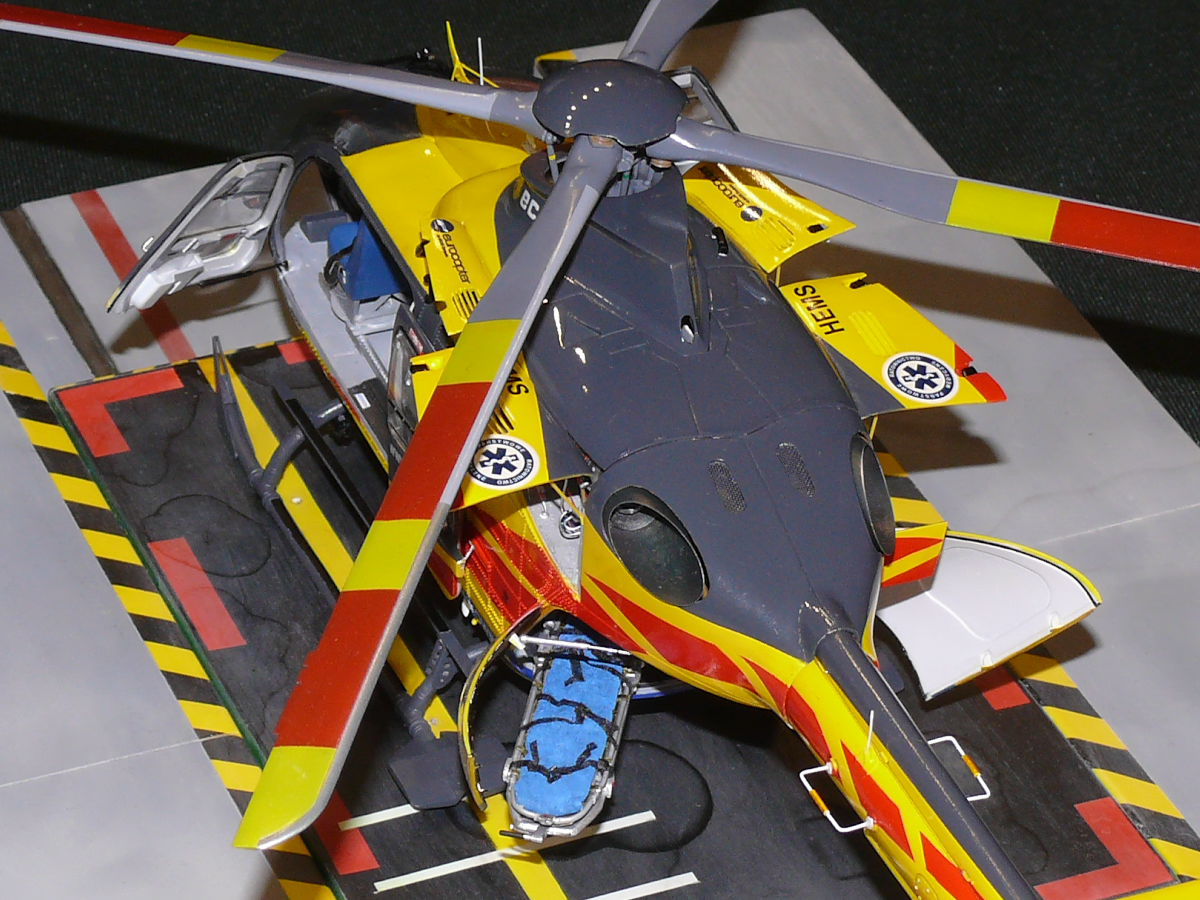

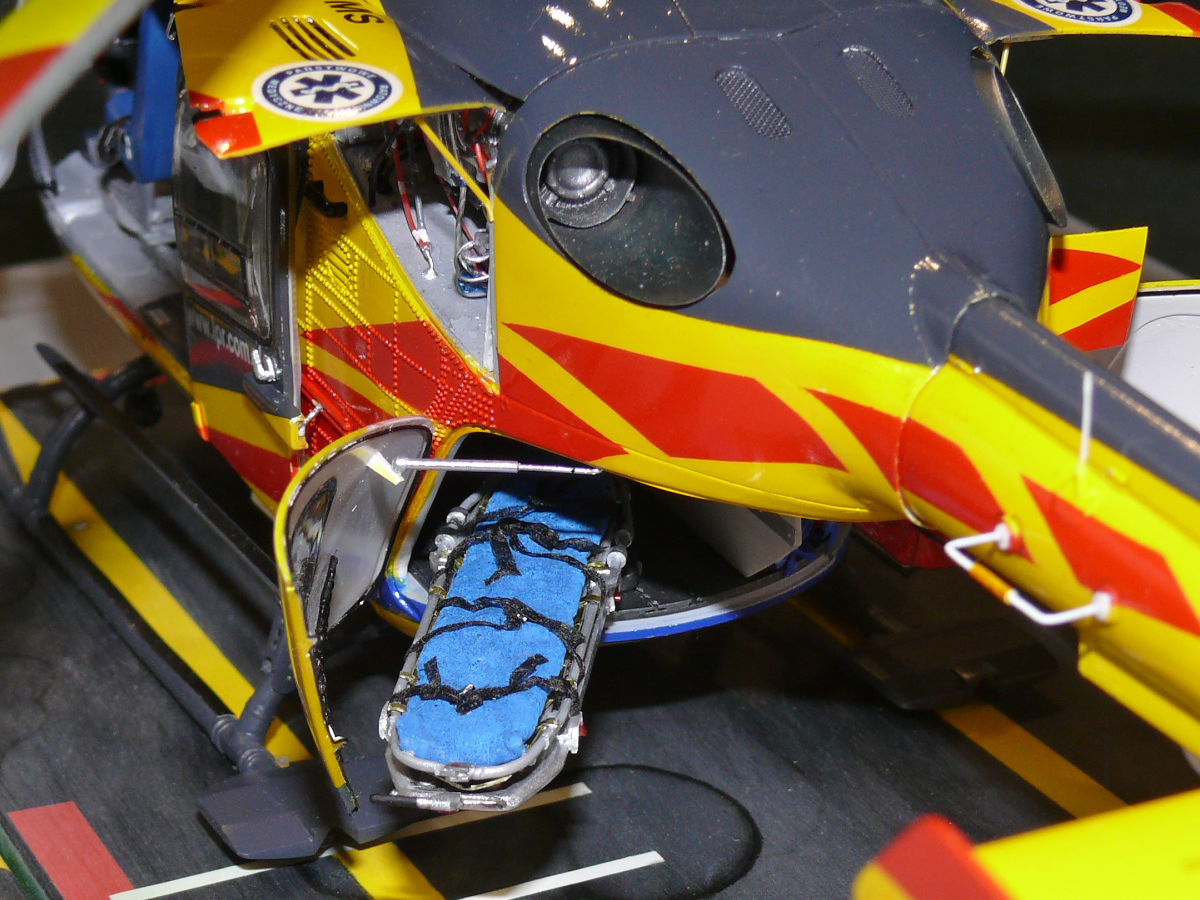

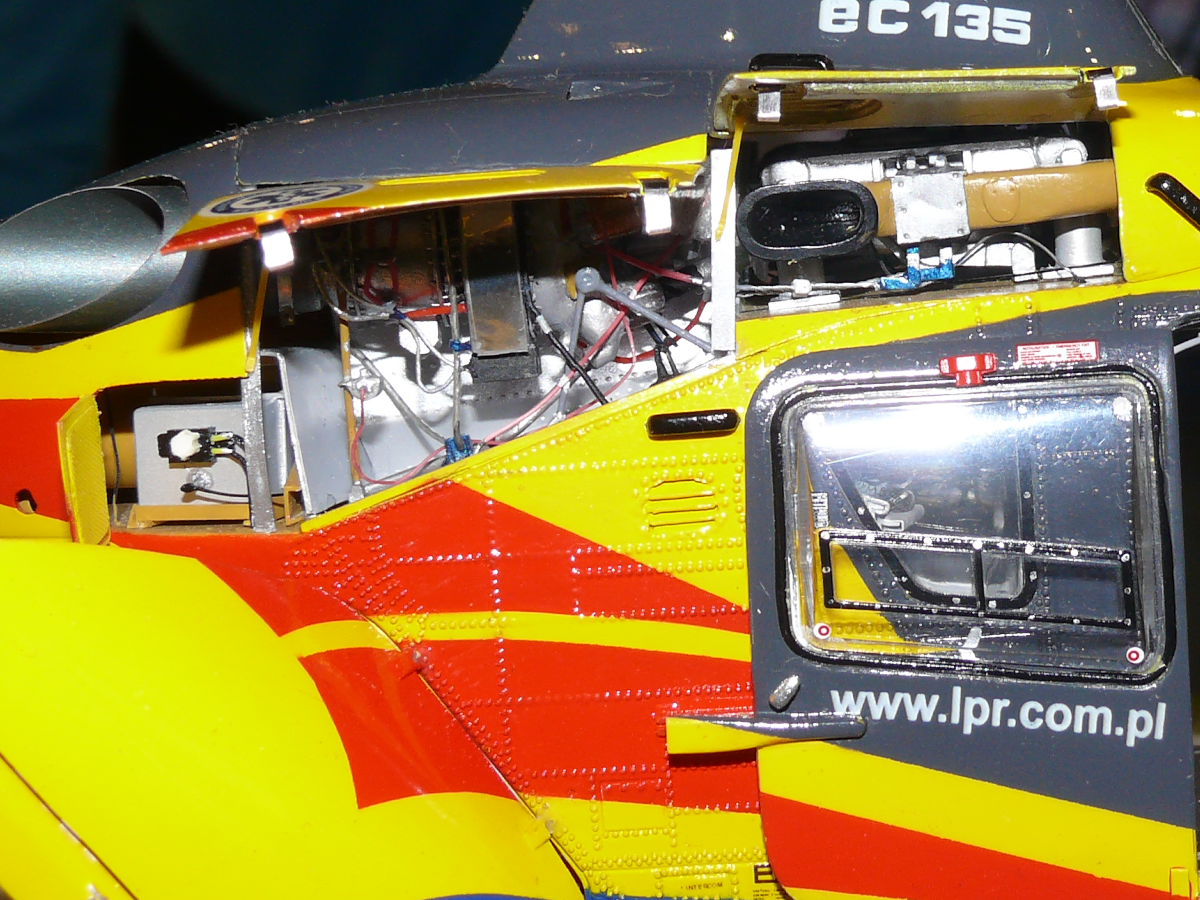

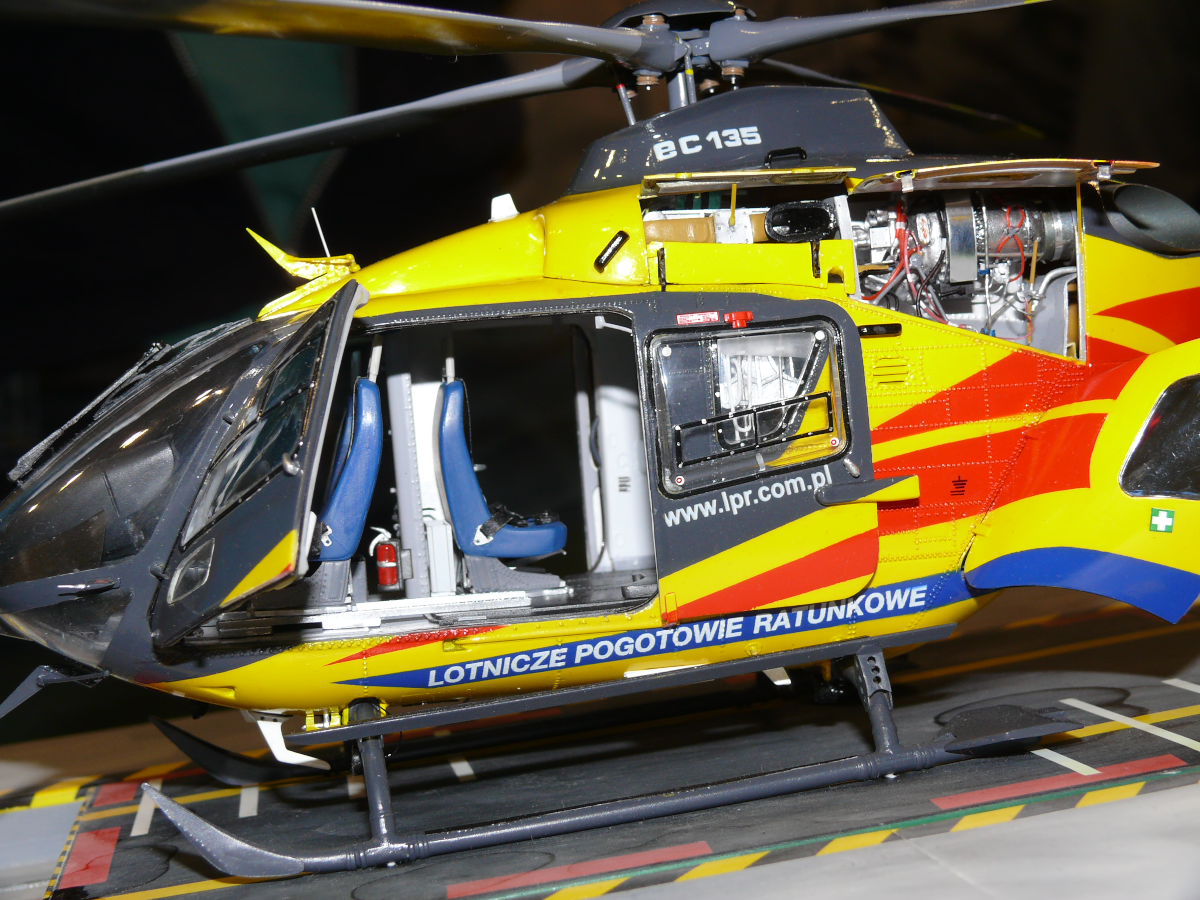

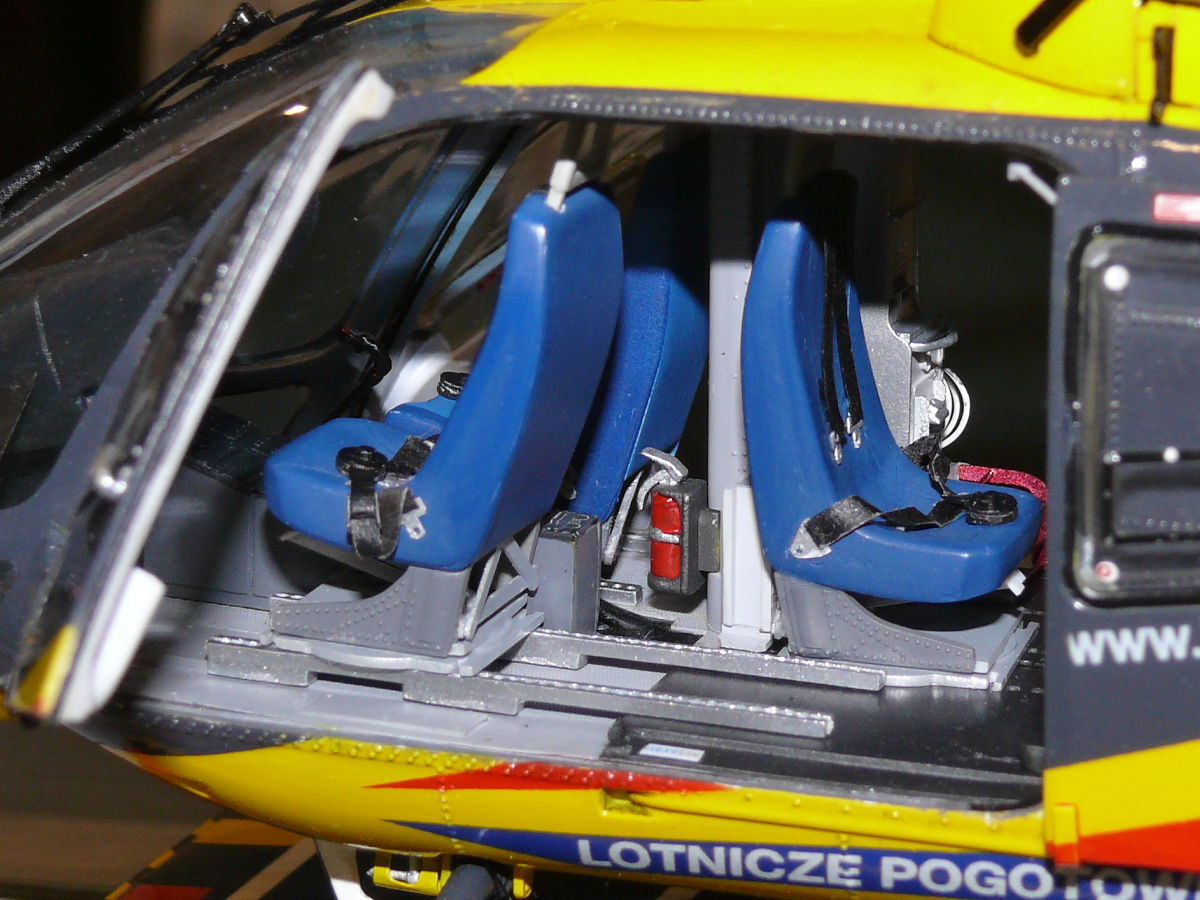

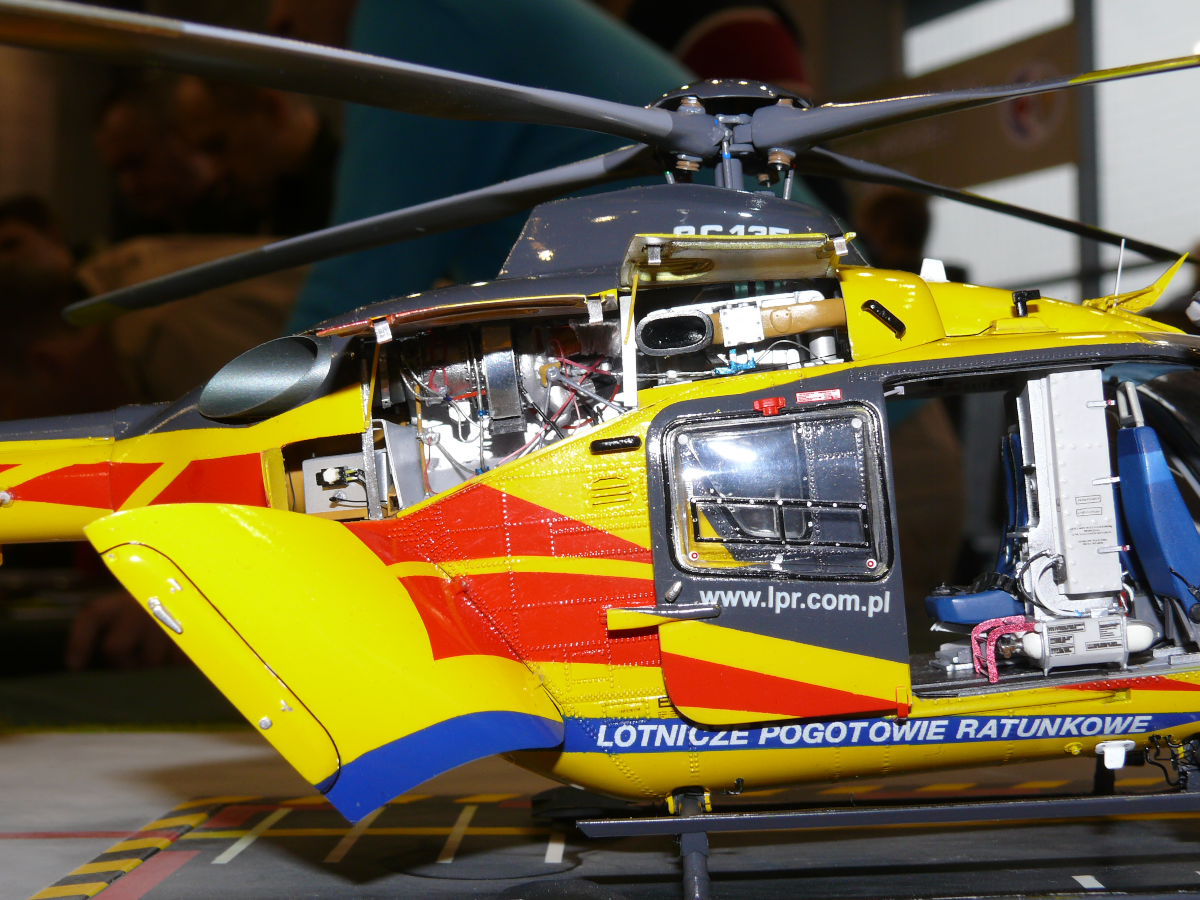

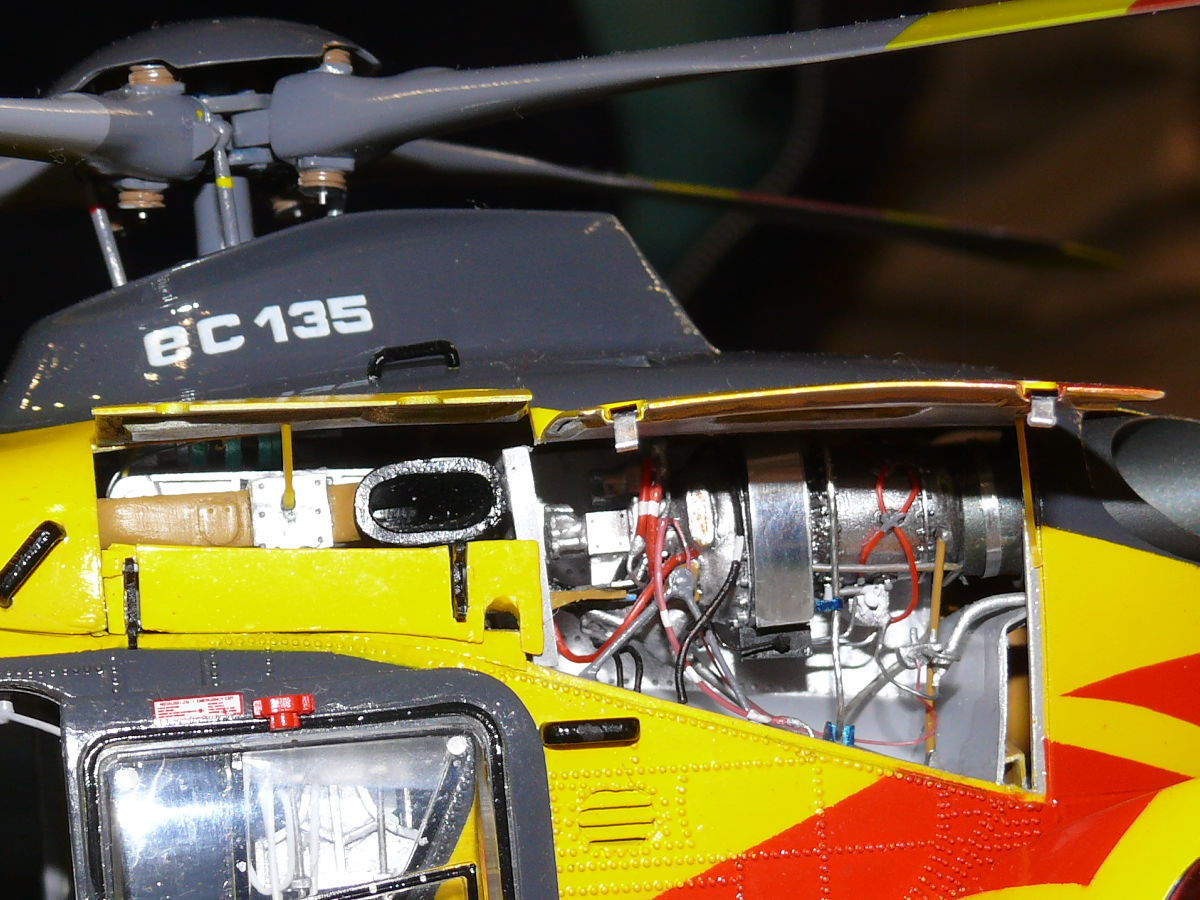

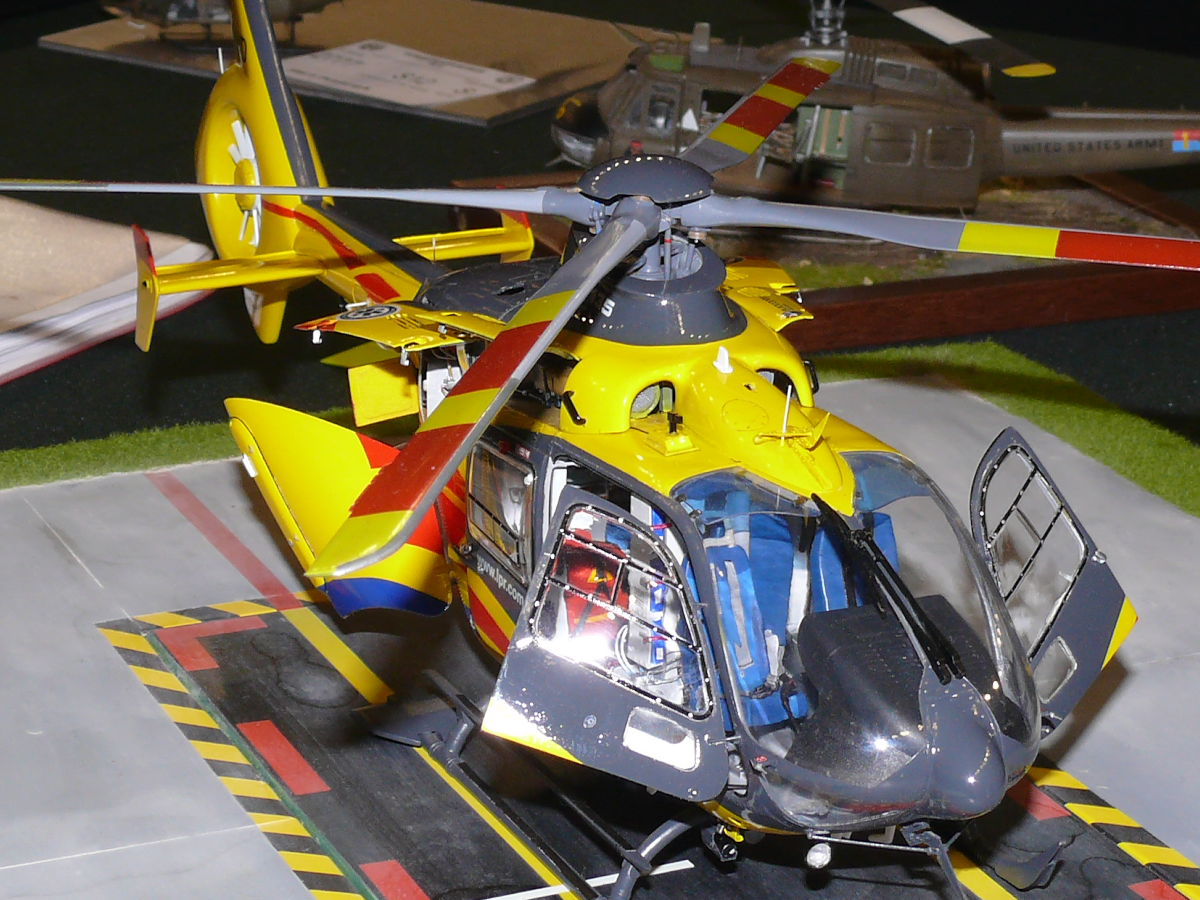

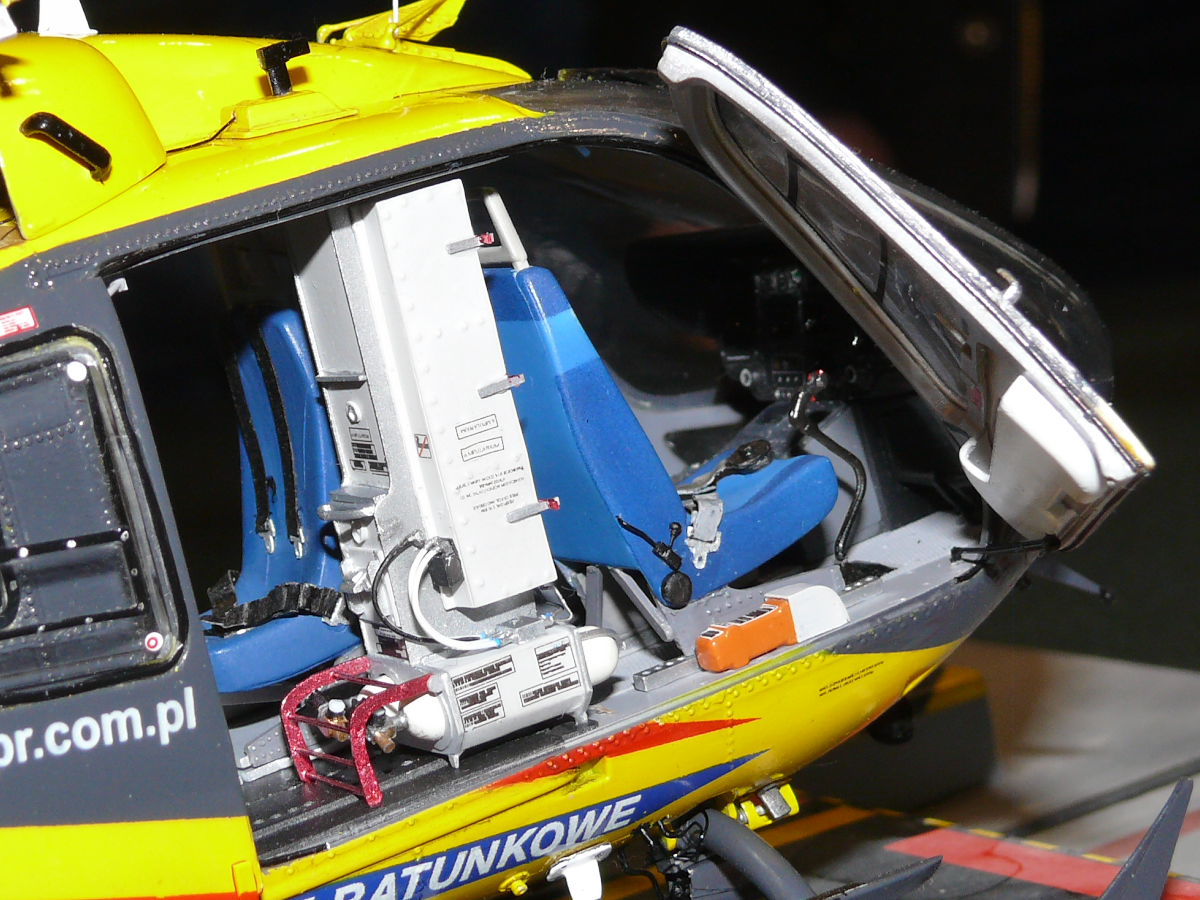

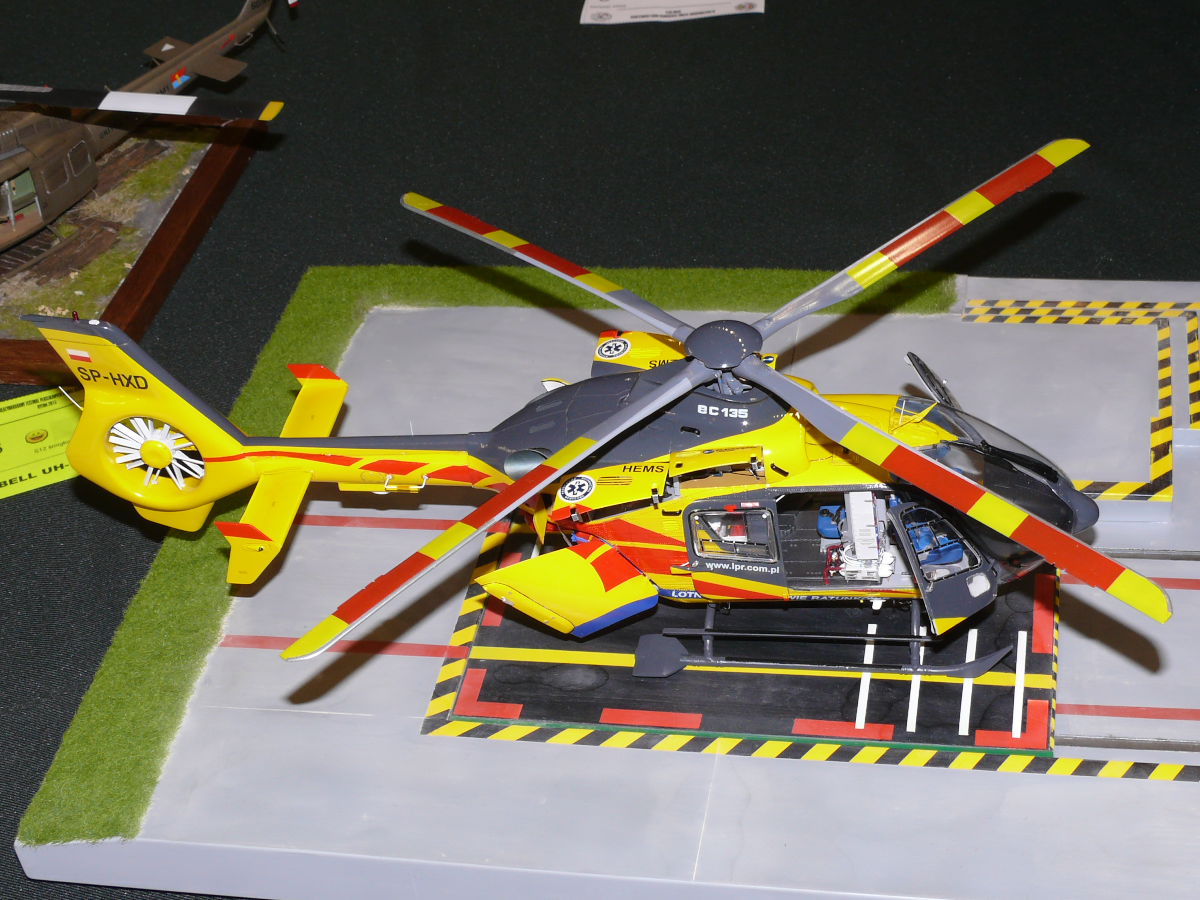

A plastic model of the Eurocopter EC135 from the Polish Medical Air Rescue was made in 1:32 scale. The work received a distinction at the 12th International Festival of Plastic Reduction Models Bytom 2015.

The Eurocopter EC135 is a light French-German passenger helicopter. It has been produced since 1996. By 2011, 1,000 copies were produced. In Germany, it is used by the local police, in Poland by the Polish Medical Air Rescue.

The helicopter can fly in almost all weather conditions and in complete lack of visibility, only according to instruments. The excess engine power allows the machine to climb quickly at a speed of 7.5 m/s (1476 fpm). In the event of failure of one of the engines, the helicopter can safely land on the other.


Specifications:

  • Hull length: 10.21 m (33.5 ft),
  • Width: 1.56 m (5.12 ft),
  • Height: 3.62 m ( 11.88 ft),
  • Rotor diameter: 10.20 m (33.46 ft),
  • Empty weight: 1460 kg (3219 lb),
  • Take-off weight: 2835 kg (6250 lb),
  • Powerplant: 2 turboshaft engines (2 x 419 kW-570 HP or 2 x 439 kW-597 HP),
  • Fuel tank capacity: 700.5 l (UK-154 gal, USA-185 gal) - 560.4 kg (1235.5 lb),
  • Service ceiling: 6096 m (20,000 ft),
  • Range: 635 km (395 mi),
  • Max speed: 259 km/h (161 mph),
  • Cruising speed: 254 km/h (158 mph),
  • Fuel consumption: about 220 liters per hour (UK-48 gal, USA-58 gal),
  • Number of seats: 2 crew members plus 6 passengers.

Sources:

  • https://pl.wikipedia.org/wiki/Eurocopter_EC135
  • http://www.pojazdy.net/lotnictwo/ile-pali-helikopter/
  • http://technowinki.onet.pl/eurocopter-ec135-lpr-smiglowiec-ktory-pomaga-ratowac-ludzkie-zycie/sh4c1
  • dr n. med. Robert GAŁĄZKOWSKI, mgr inż. Łukasz GAWROŃSKI "ŚMIGŁOWIEC LOTNICZEGO POGOTOWIA RATUNKOWEGO EC 135 P2+. Porównanie ze śmigłowcem Mi-2plus."

11 Aug 2015

Modeller: Grzegorz Mądry - Inowrocławskie Stowarzyszenie Modelarzy Redukcyjnych (ISMR) - (The Association of Reduction Modelers in Inowrocław)

Photographer: Ender
