AV-8B Harrier

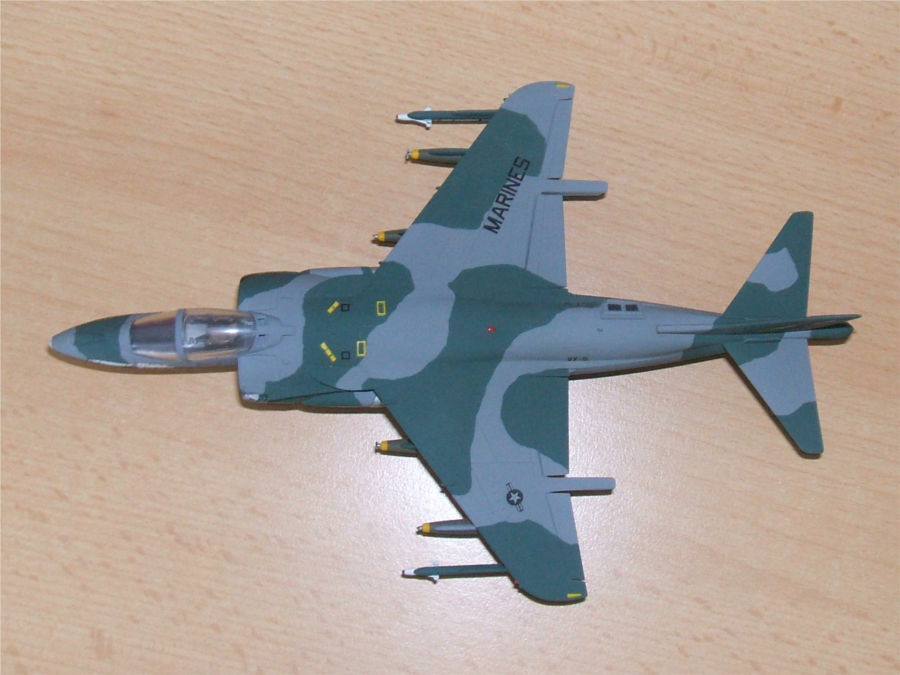

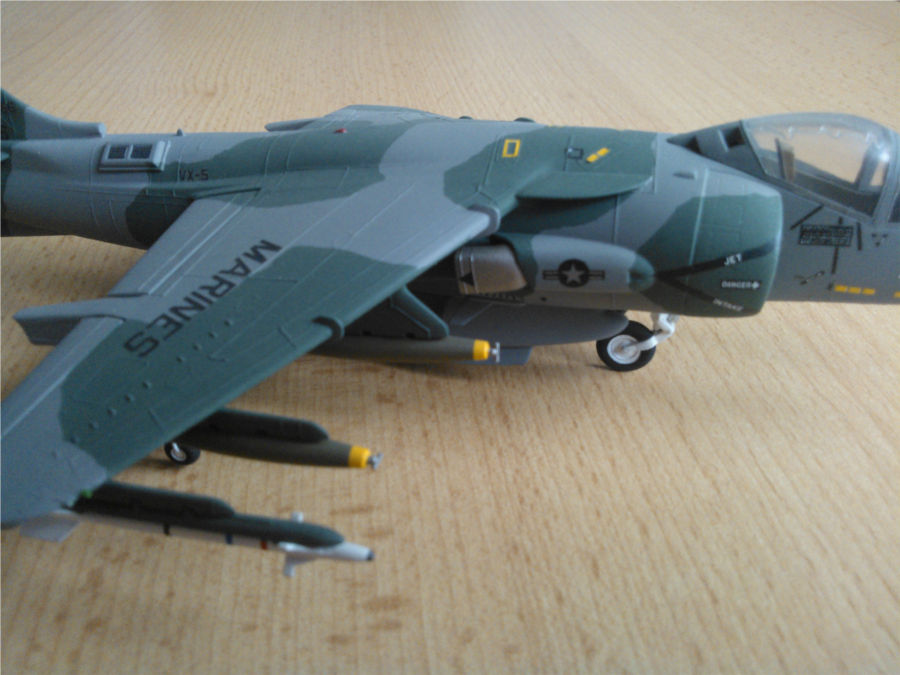

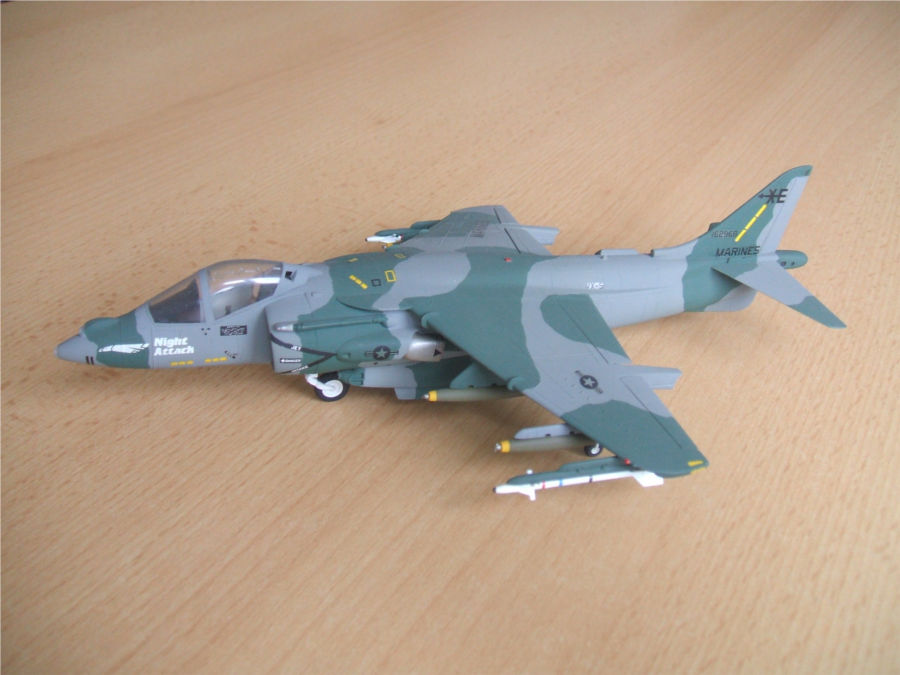

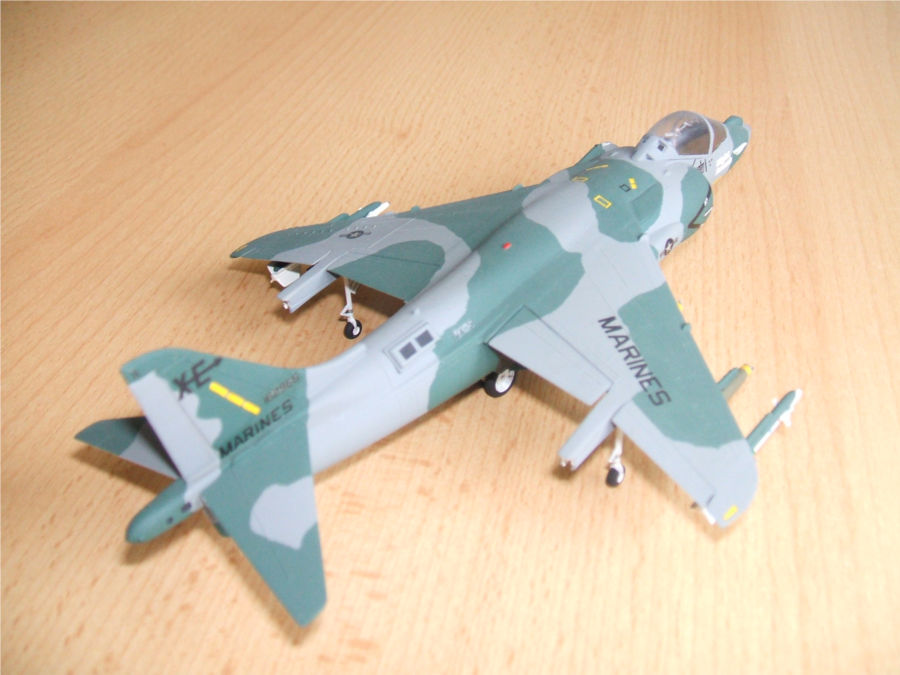

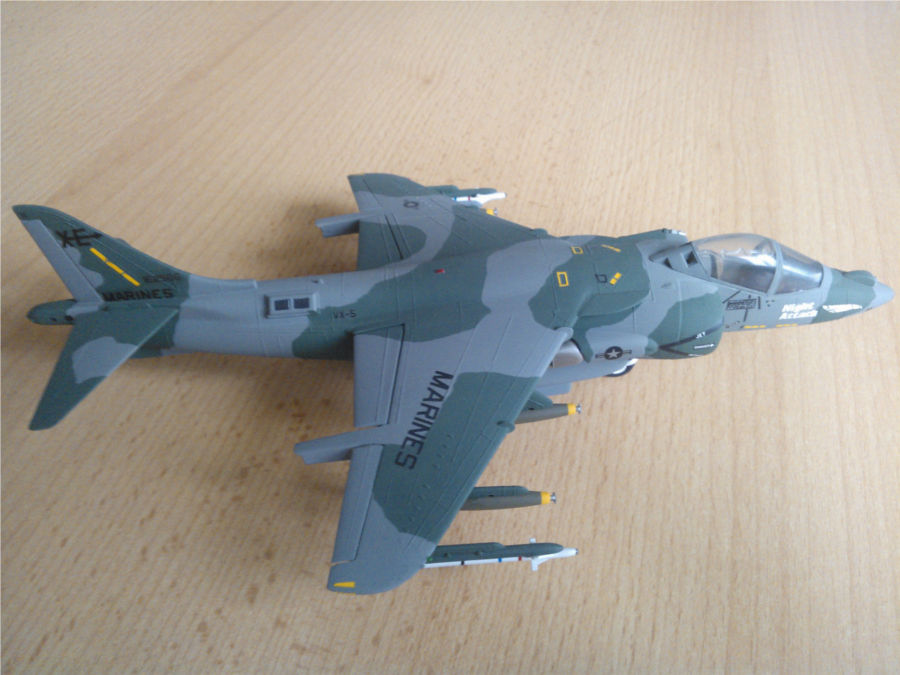

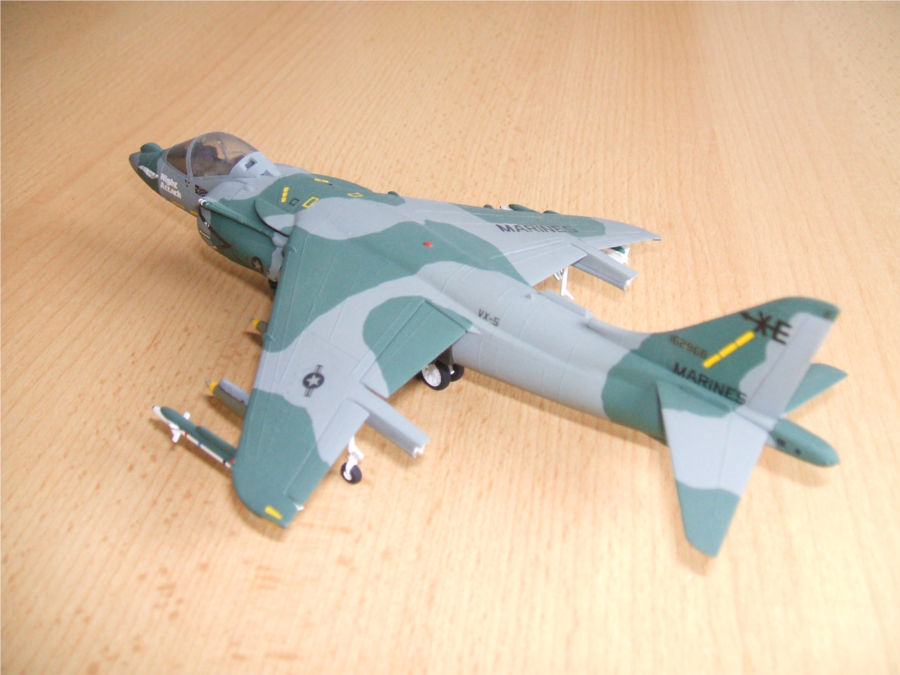

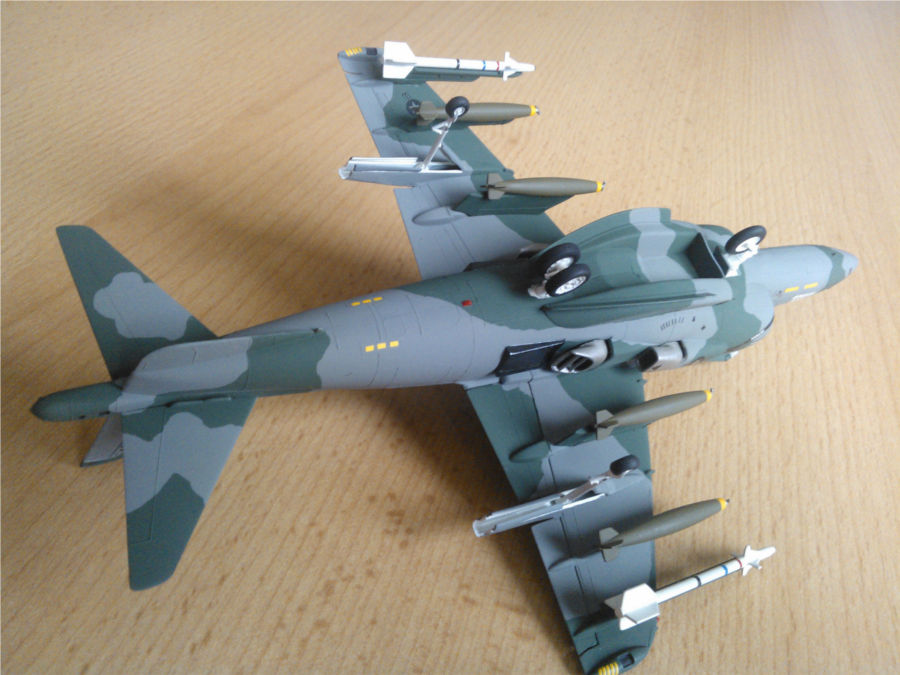

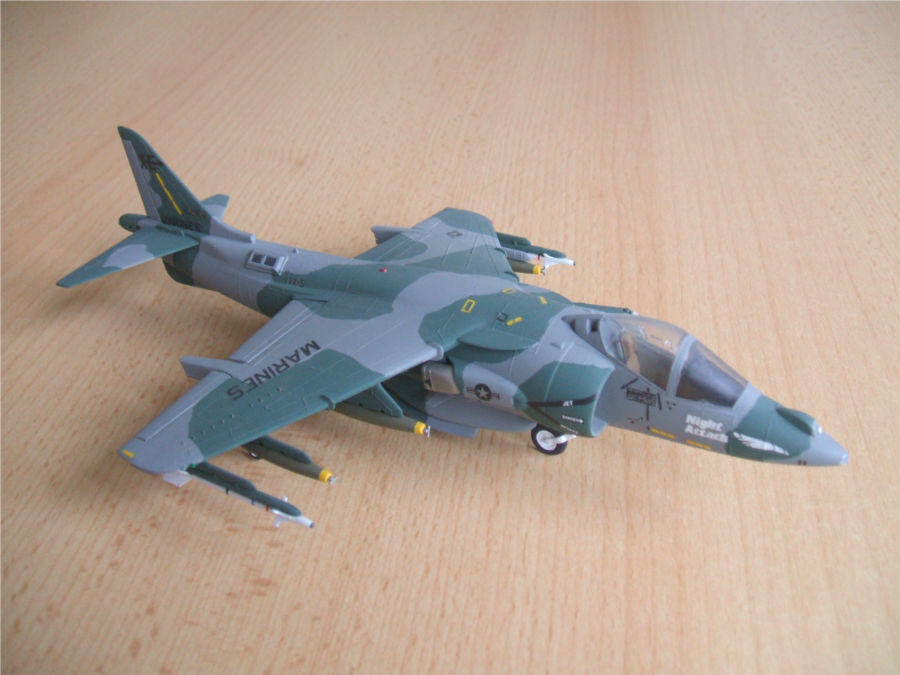

The photos represent a plastic model of the AV-8B Harrier made from the Italeri kit in 1:72 scale.

The AV-8B Harrier is an American-British semi-shell duralumin construction. The plane is capable of vertical and short take-off. It can act as a reconnaissance and close support aircraft. The Harrier can operate from ground bases and landing ships.

The first flight took place on November 5, 1981. Production started in 1983. The AV-8B Harrier aircraft took part in the fighting in Iraq and Afghanistan. Earlier versions of British aircraft (Harrier GR.3) fought in the 1982 war for the Falklands. The Harriers are in service with the armies of the United States, Great Britain, Spain and Italy.

The AV-8B Harrier can be equipped with a 25 mm (0.98 in) GAU-12 gun or a 30 mm (1.18 in) ADEN 30 gun. In addition, it can be hang 4200 kg (9259 lb) of various types of bombs and missiles up to seven hardpoints.


Specifications:

  • Length: 14.12 m (46.33 ft),
  • Wingspan: 9.25 m (30.35 ft),
  • Height: 3.55 m (11.65 ft),
  • Empty weight: 6,336 kg (13,968 lb),
  • Mass for vertical take-off: 8,595 kg (18,949 lb),
  • Mass for short take-off: 14,060 kg (30,997 lb),
  • Max speed: 1,089 km/h (0.89 Ma, 677 mph),
  • Service ceiling: 15,240 m (50,000 ft),
  • Range: 3,640 km (2,262 mi),
  • Radius of action: 1,000 km (621 mi).

Sources:

  • https://pl.wikipedia.org/wiki/McDonnell_Douglas_AV-8B_Harrier_II,
  • Przegląd Konstrukcji Lotniczych Nr 20 Harrier, Wydawca: Agencja Lotnicza Altair Ltd - Warszawa 1994.
  • http://web.bg.uw.edu.pl/welw/military.pl/samoloty/av-8_harrier/index.html

11 Jun 2013

Modeller: no data

Photographer: Ender

These photos are available under the Creative Commons Attribution-ShareAlike 4.0 International license. This means that you can use them for free for any purpose, even for commercial purposes, as long as you indicate the author of the photos and the link to the source, i.e. the website address from which they were taken. You must also provide the license name and a link to its terms and conditions.
