Plastic model of the AH-1G Cobra attack helicopter

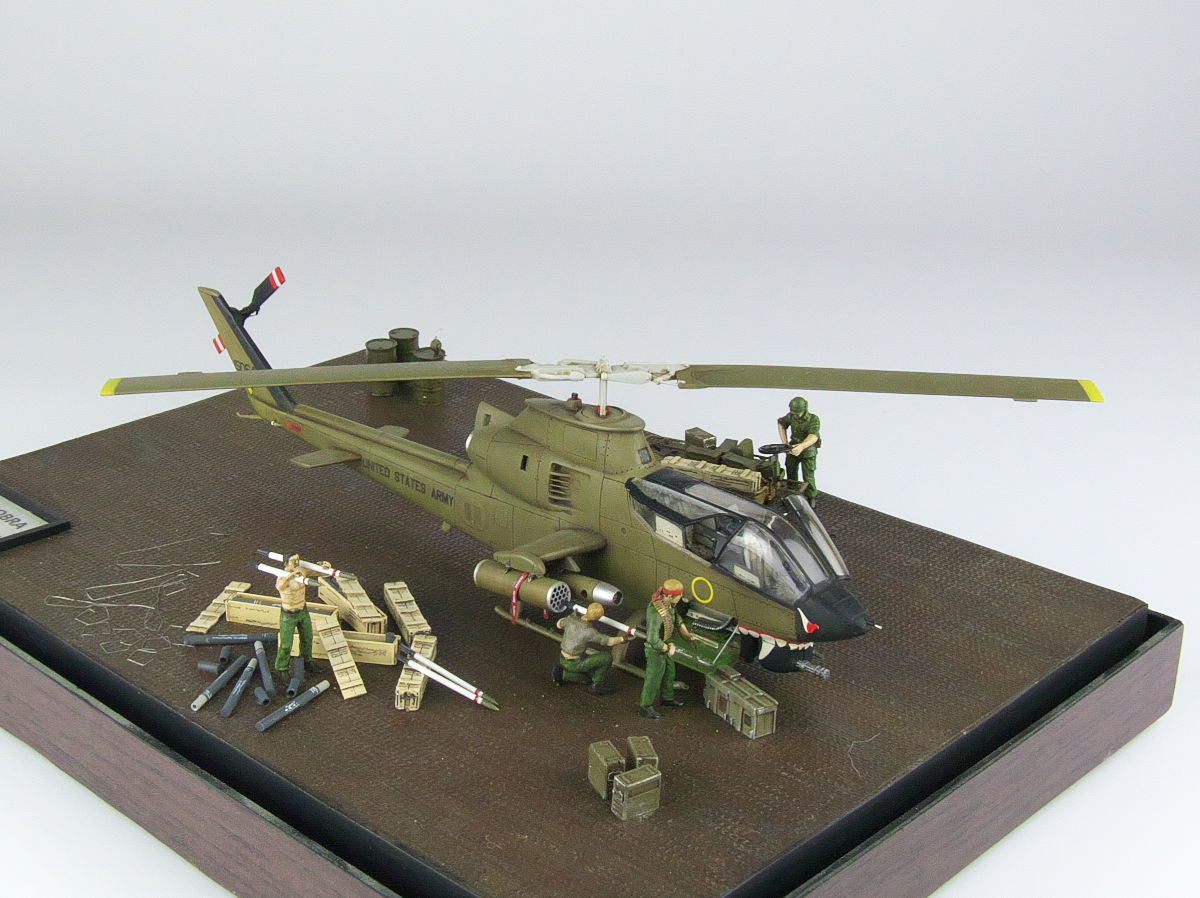

The photos show a 1:72 scale plastic model of the American AH-1G Cobra attack helicopter.

The AH-1G Cobra helicopter was used to cover airlifts, provide fire support for ground troops and scout helicopters. It first flight in 1965, entered service in 1967 and was immediately sent to Vietnam. It was also used in other armed conflicts. The AH-1G Cobra was withdrawn from use in the USA in 2001 and replaced by the AH-64 Apache helicopter.

The crew in the AH-1 Cobra consisted of two people sitting one behind the other. This arrangement allowed for the construction of a narrower fuselage, which was 0.965 meters (3.17 ft) at its widest point and was a more difficult target to hit.

The gunner sat in the front and operated the turret in the nose of the helicopter. Two weapons could be mounted in the turret. The helicopter, the scale model of which is in the photos, has a 6-barrel machine gun and an automatic grenade launcher in its turret.

There was a pilot at the back who also fired unguided rockets placed under the wings. However, the machine could be controlled from both seats, and both crew members were usually the pilots.


Some technical data:

  • Turboshaft engine with a power of 1,100 hp (820 kW),
  • Fuselage length: 13.5 m (44.3 ft),
  • Wingspan: 3.15 m (10.3 ft),
  • Height: 4.11 m (13.5 ft),
  • Empty weight: 2,635 kg (5,809 lb),
  • Take-off weight: 4,309 kg (9,500 lb),
  • Rotor diameter: 13.4 m (44 ft),
  • Max speed: 276 km/h (172 mph),
  • Never exceed speed: 350 km/h (217.5 mph),
  • Range: 570 km (354 mi),
  • Rate of climb: 6.2 m/s (1,220 ft/min),
  • Service ceiling: 3,500 m (11,483 ft).

Sources:

  • https://pl.wikipedia.org/wiki/Bell_AH-1_Cobra
  • https://en.wikipedia.org/wiki/Bell_AH-1_Cobra

17 Feb. 2024

Modeller: Jacek Minich

Photographer: Ender

These photos are available under the Creative Commons Attribution-ShareAlike 4.0 International license. This means that you can use them for free for any purpose, even for commercial purposes, as long as you indicate the author of the photos and the link to the source, i.e. the website address from which they were taken. You must also provide the license name and a link to its terms and conditions.
