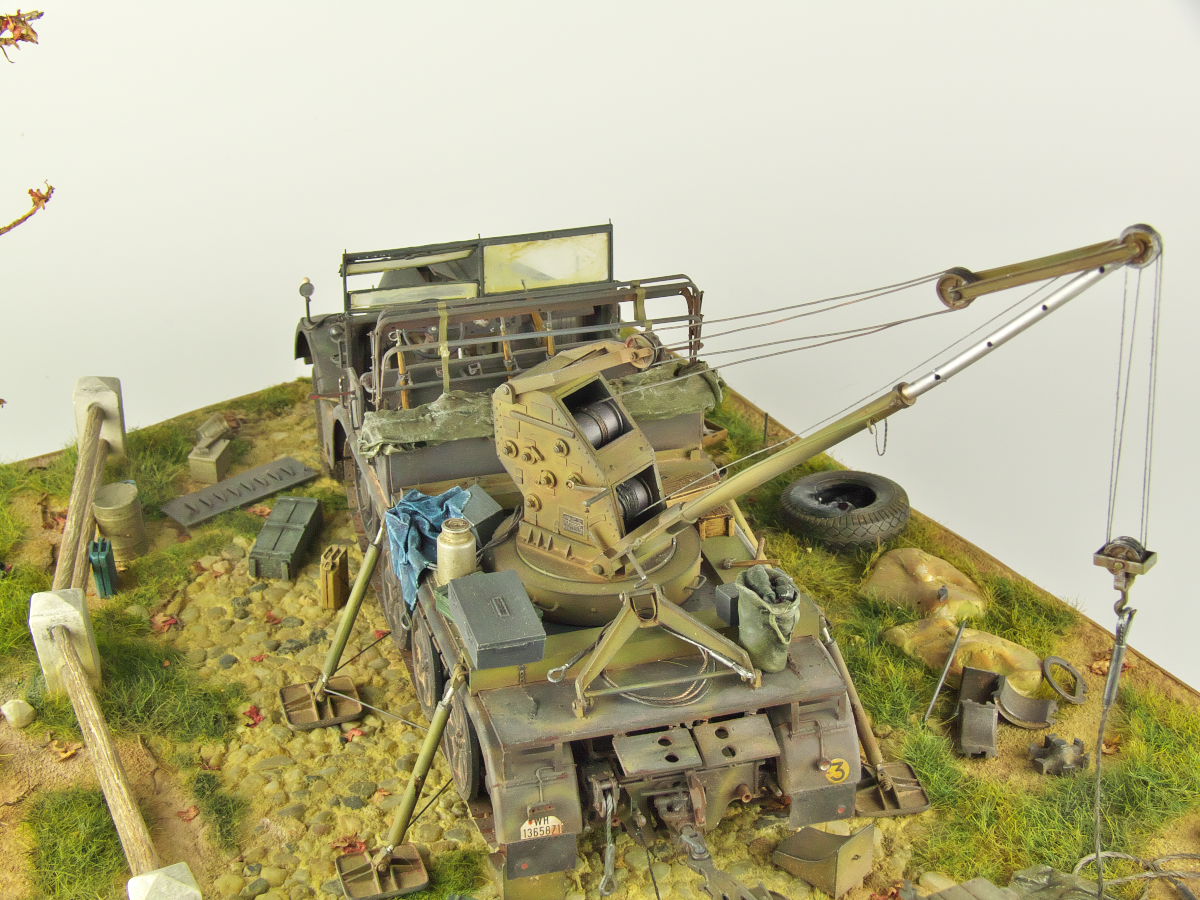

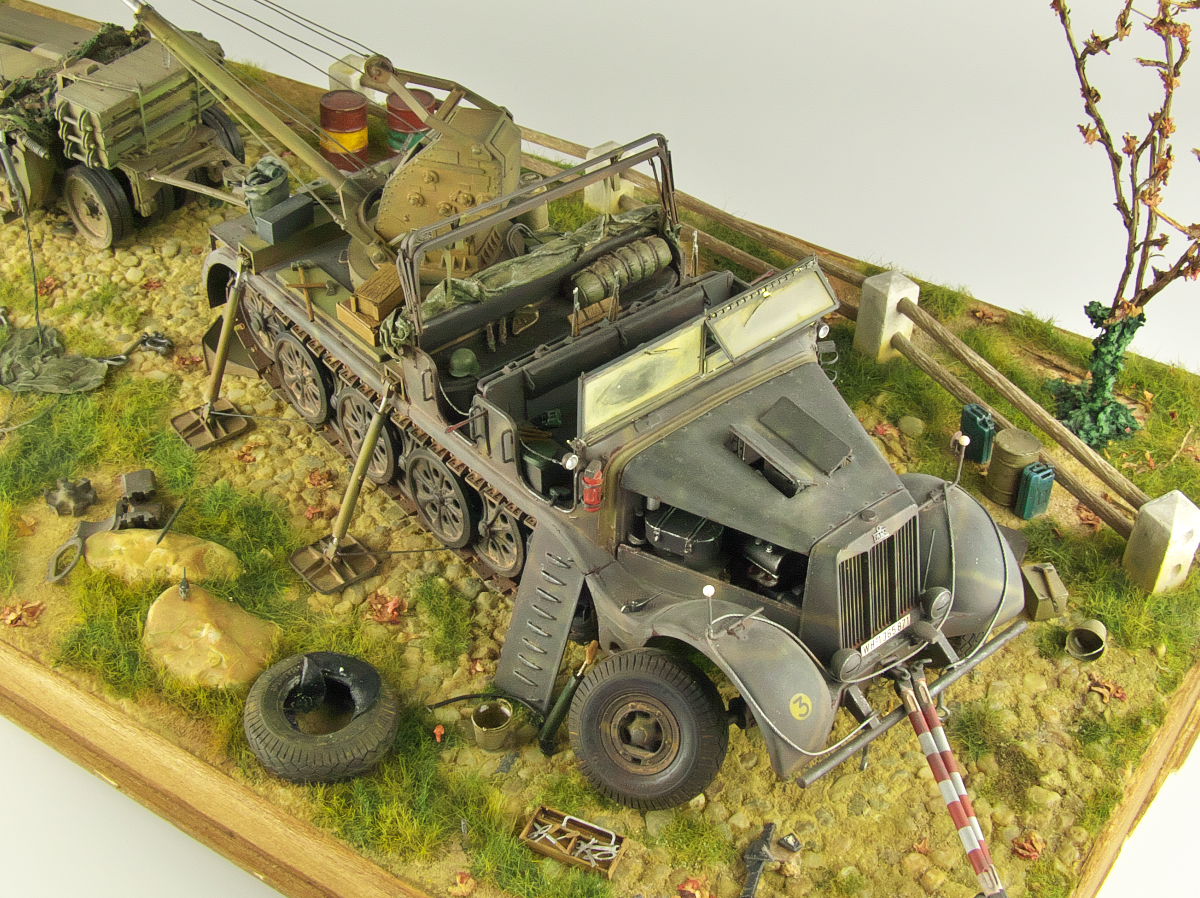

Plastic model of the Sd.Kfz.9 half-track vehicle with a crane

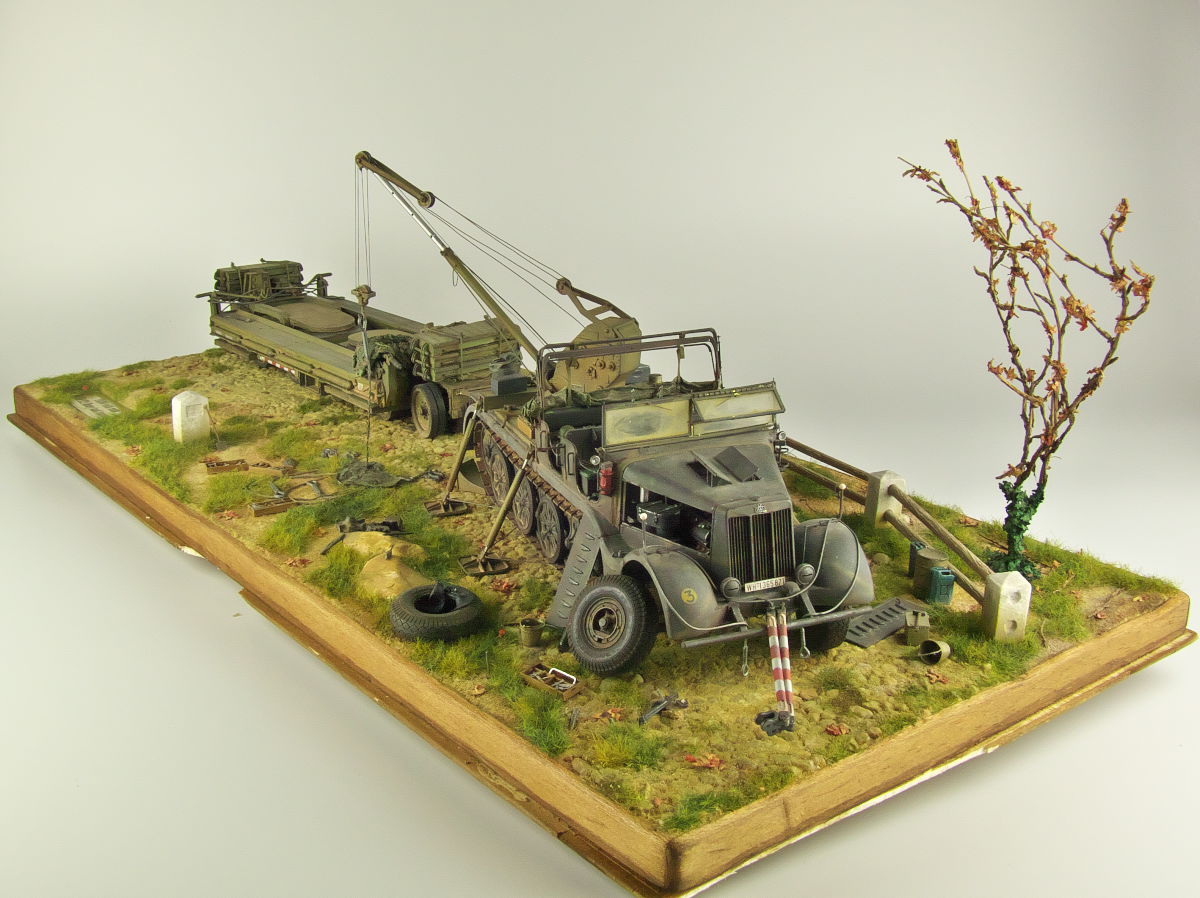

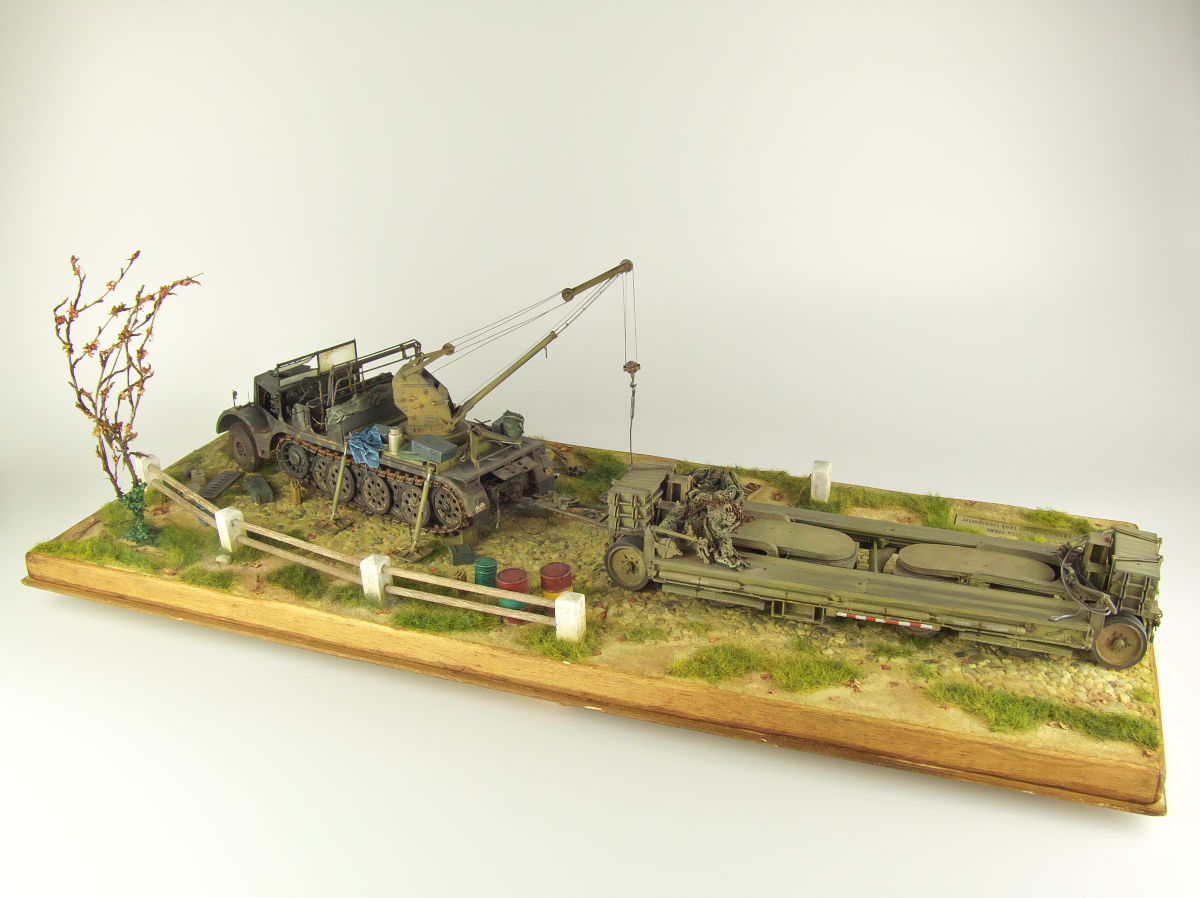

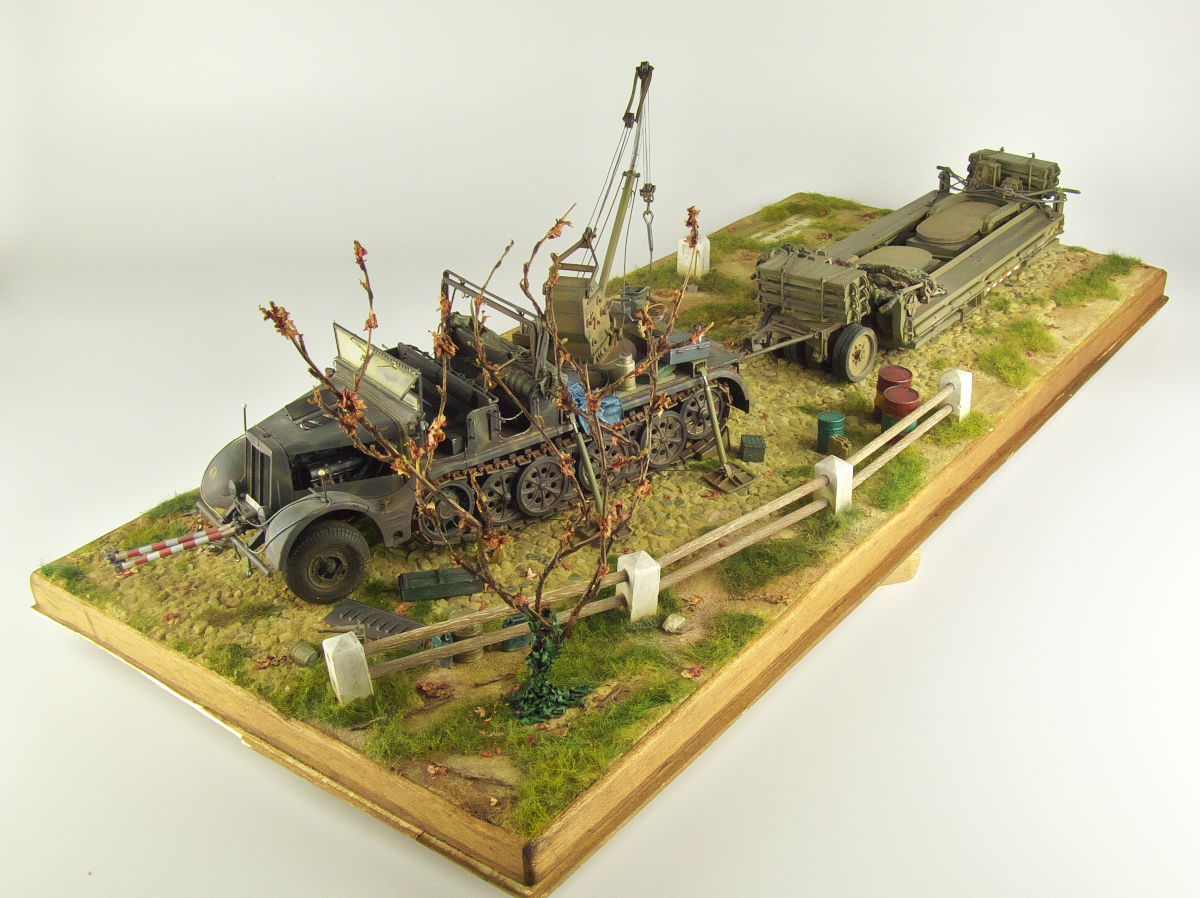

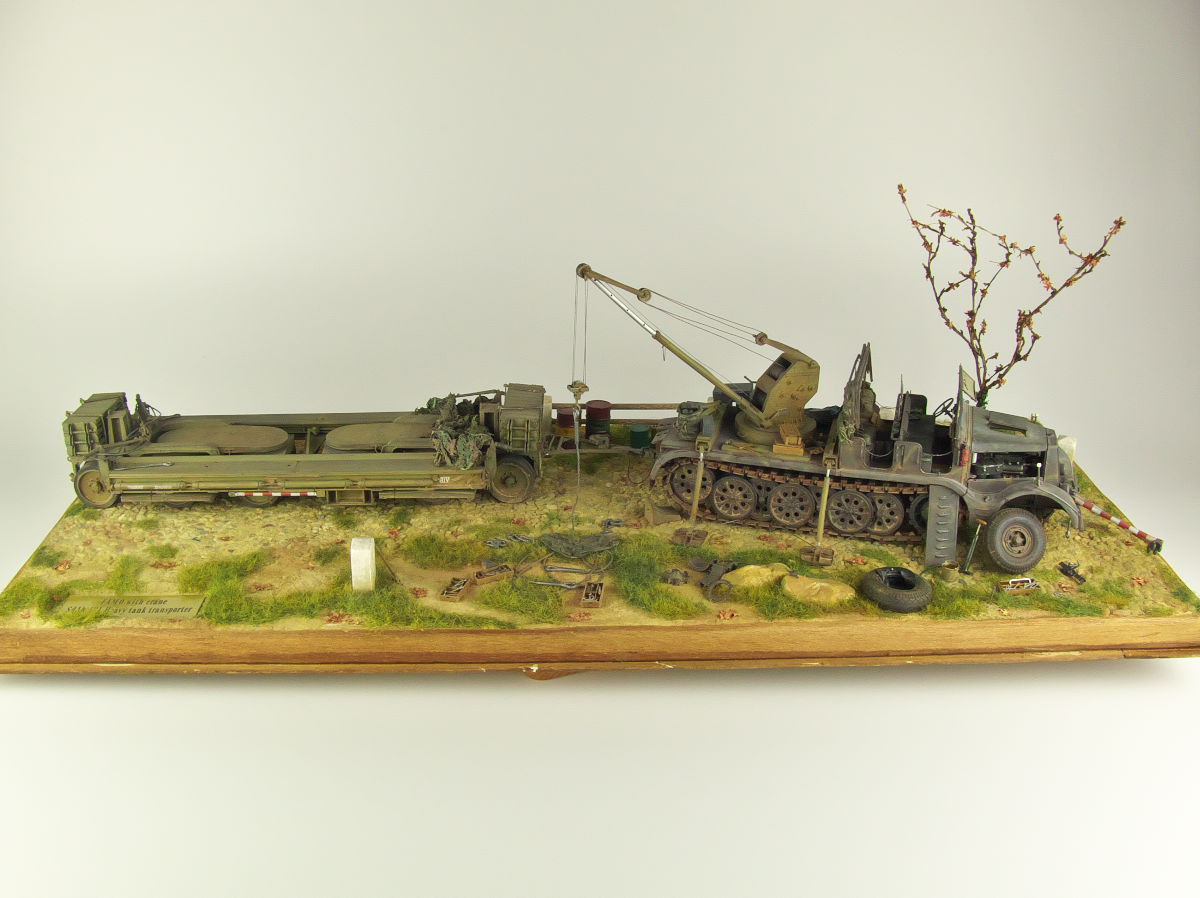

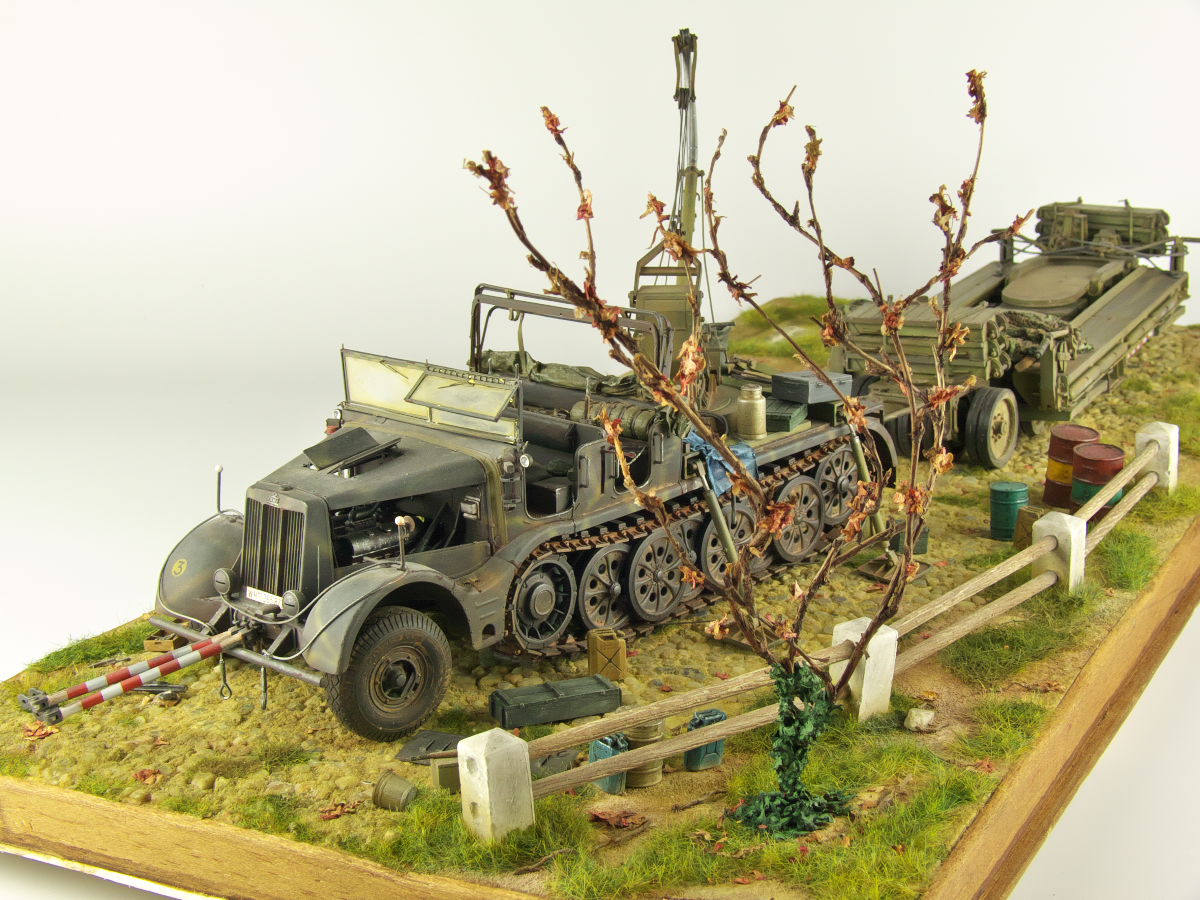

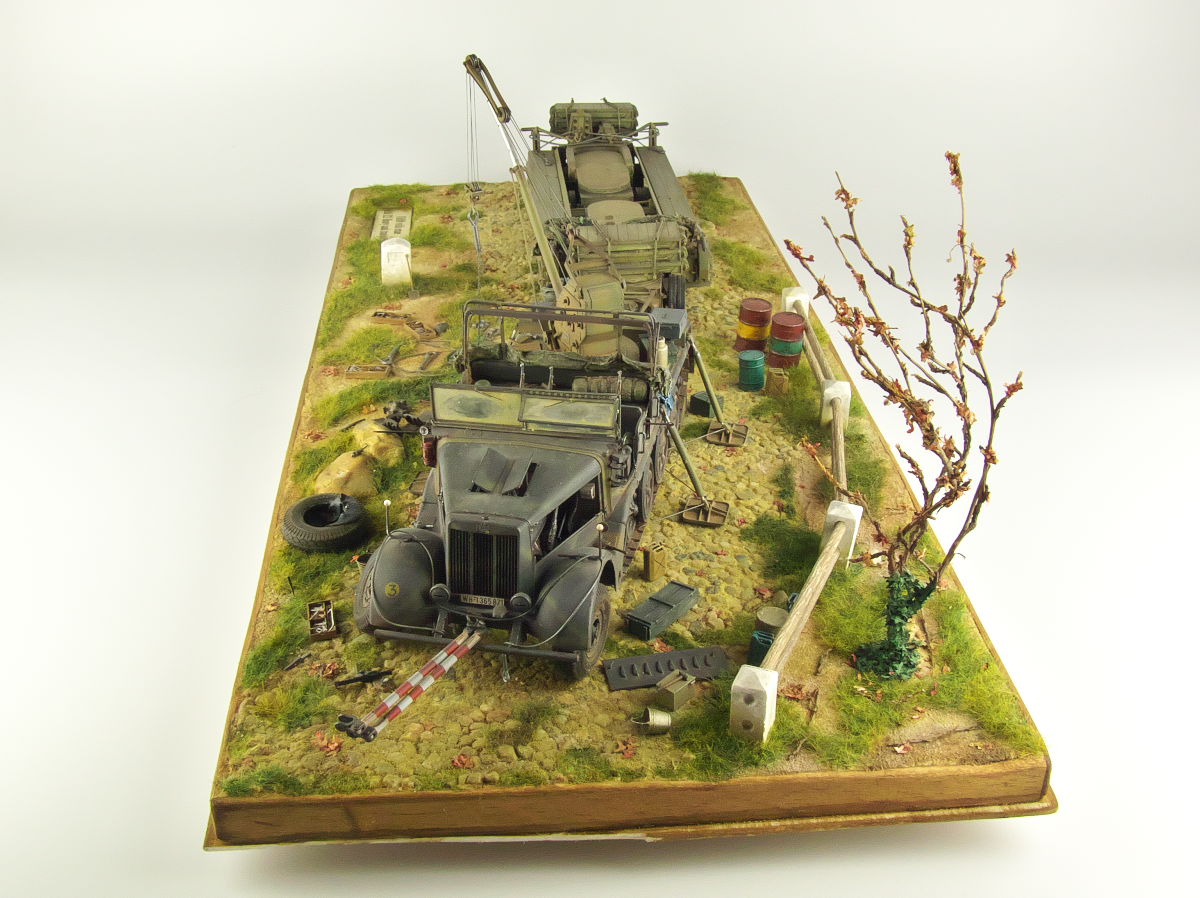

The diorama is made in 1:35 scale and shows an imaginary scene from the Second World War. There are a plastic model of the German Sd.Kfz.9 half-track vehicle produced by Famo and a resin model of a semitrailer for transporting heavy tanks produced by Kassbohrer on the diorama .

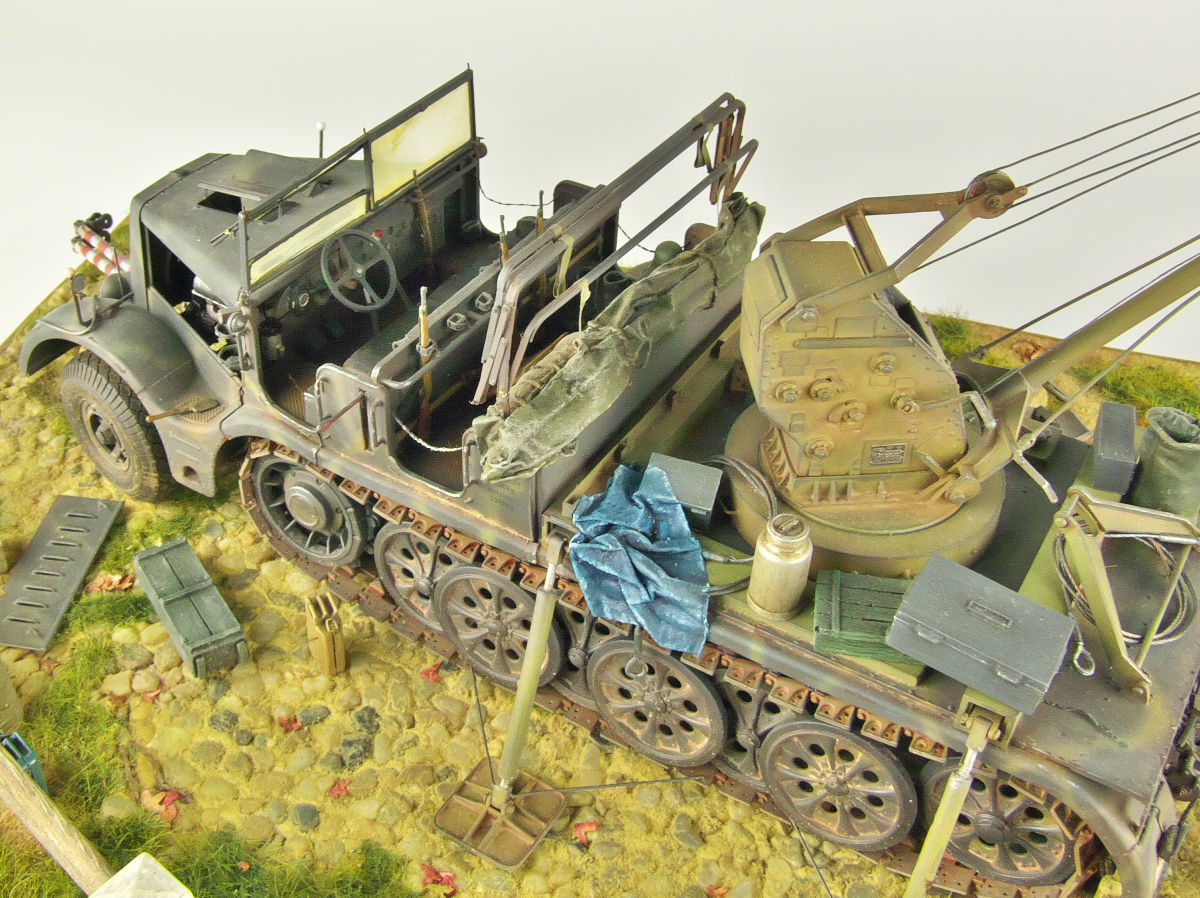

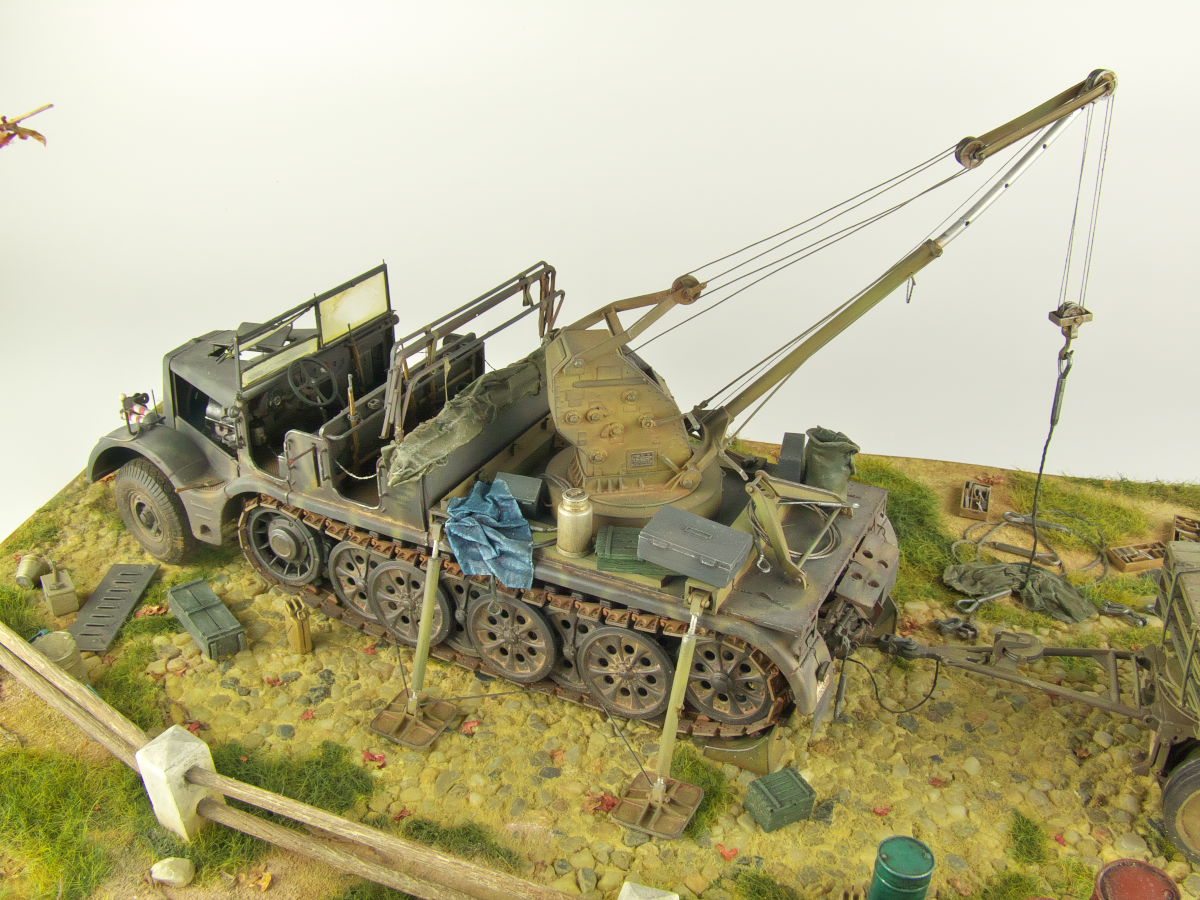

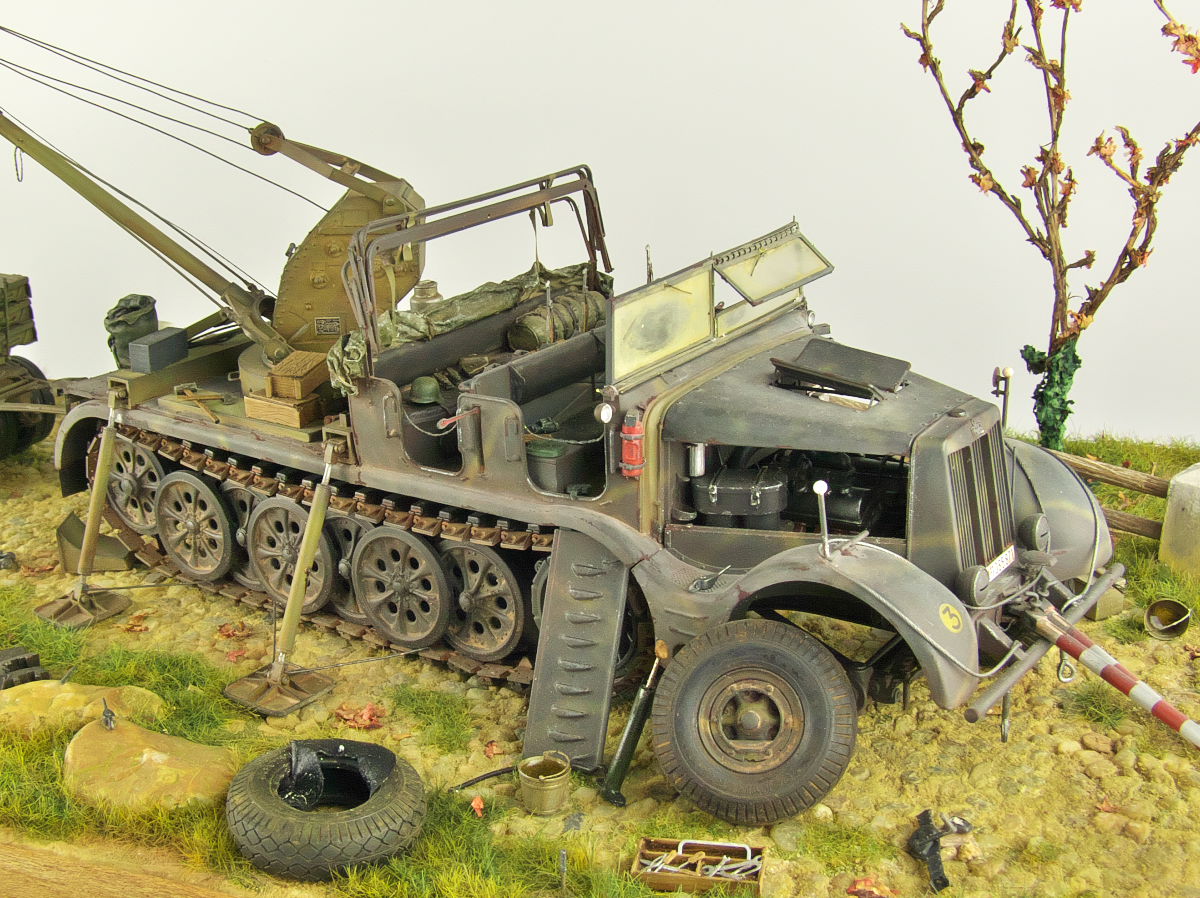

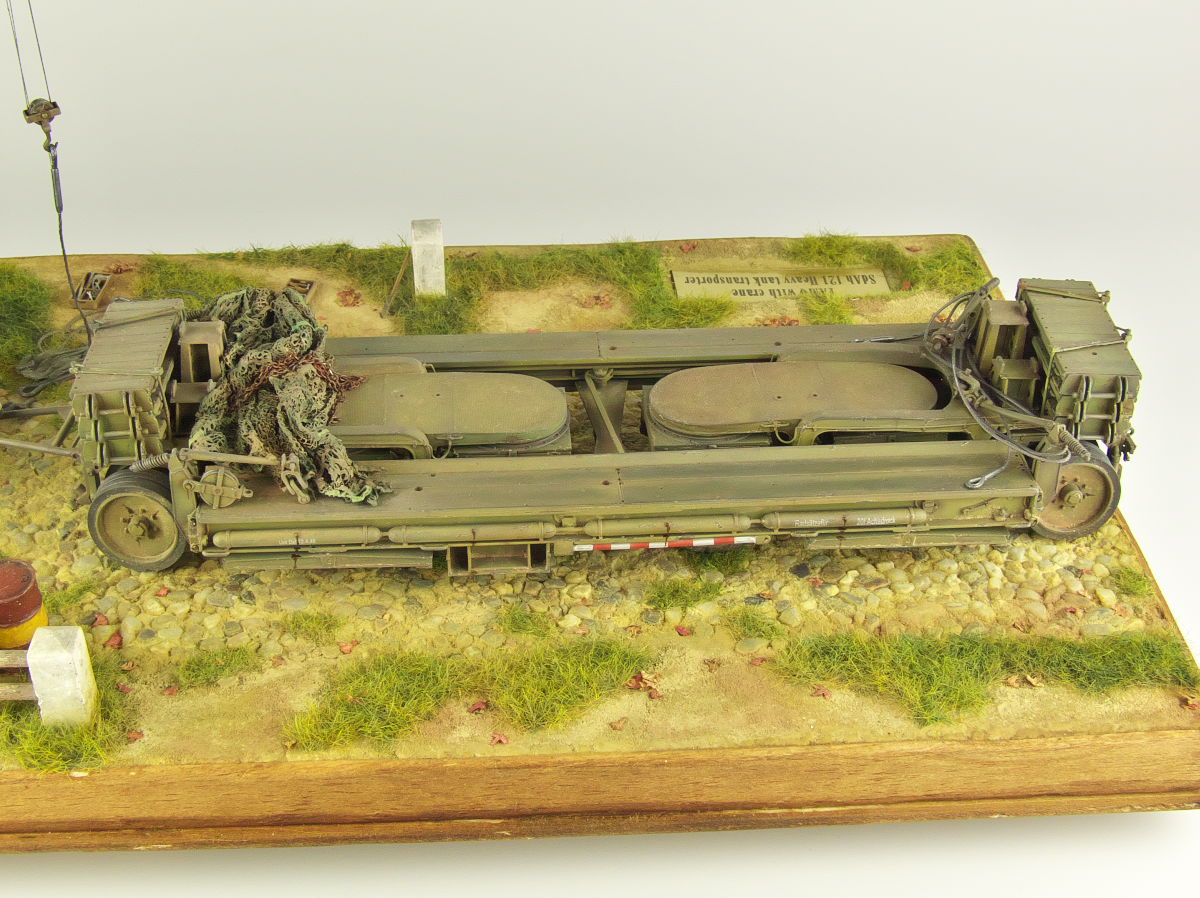

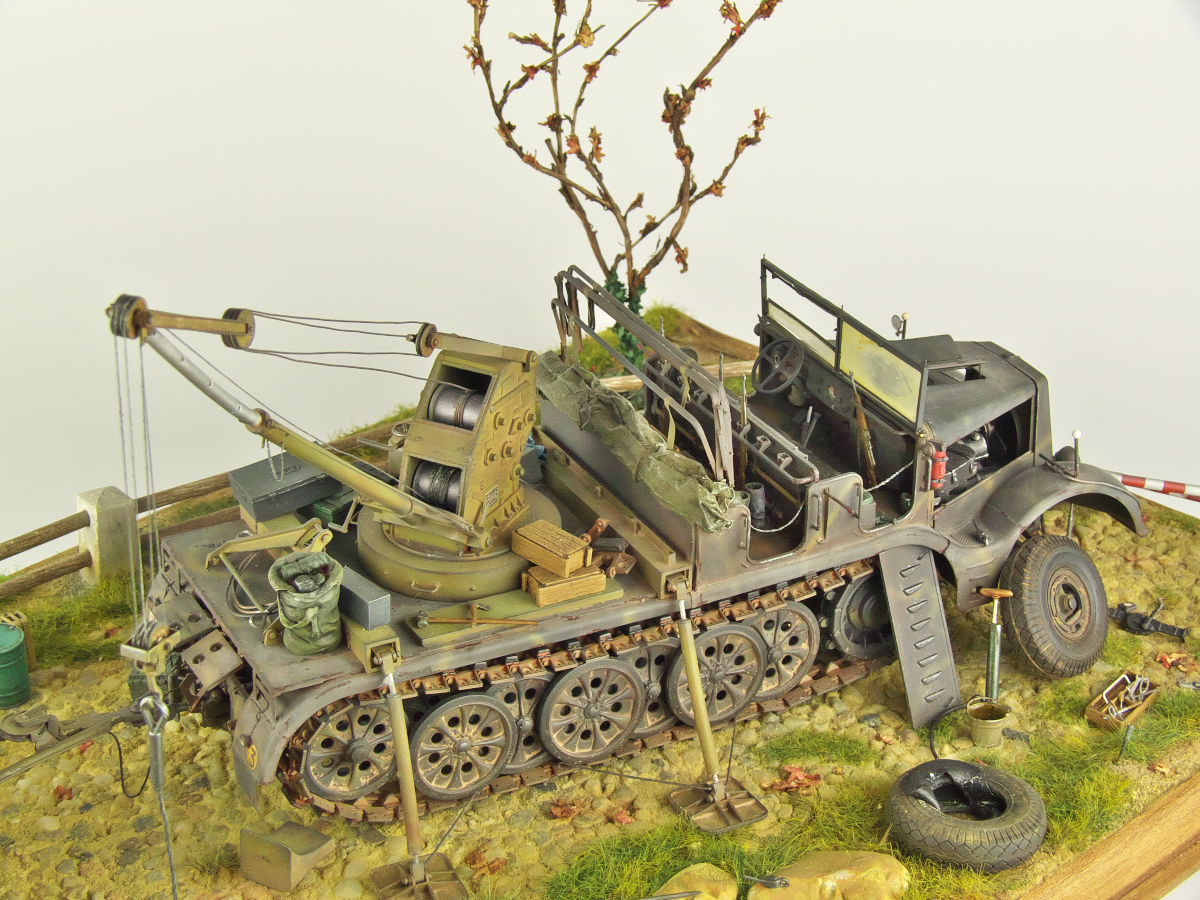

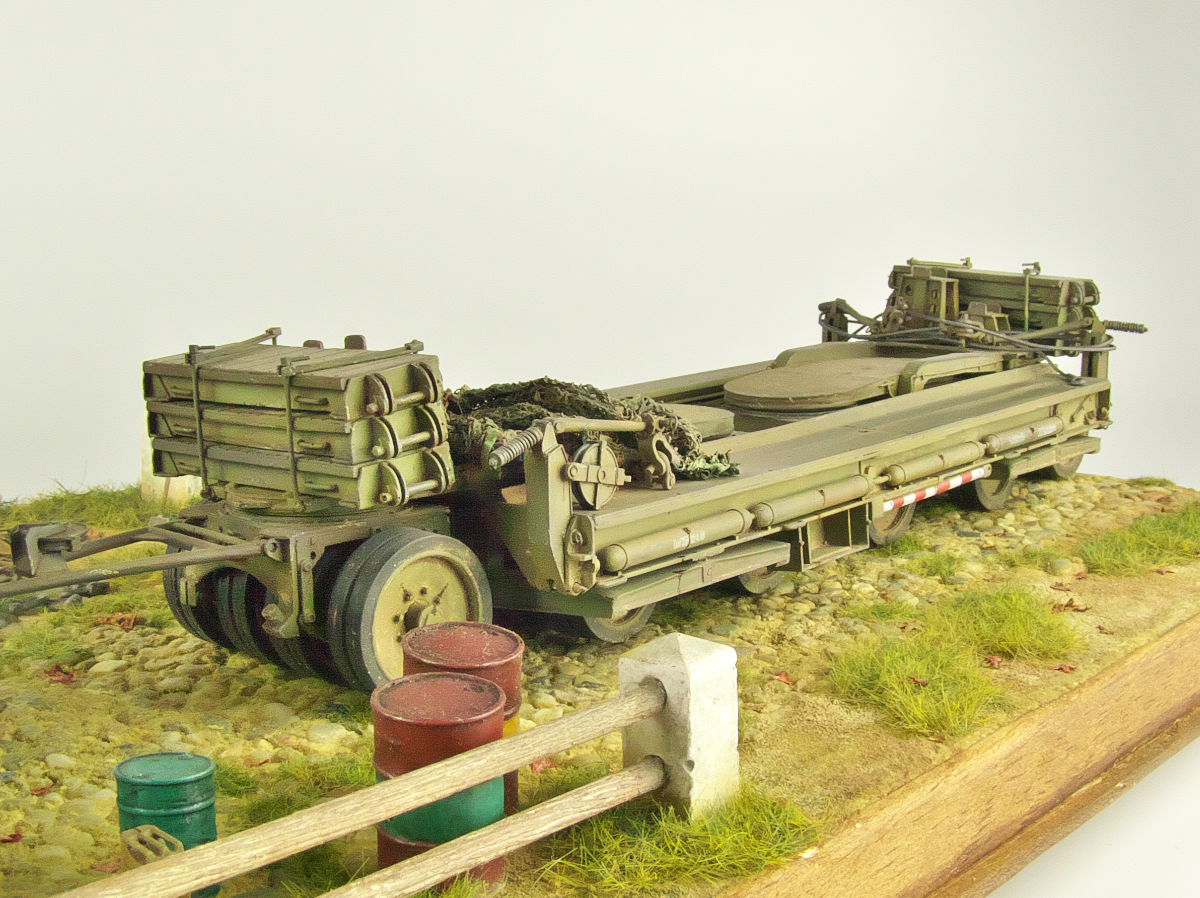

The artillery tractor model was built from the Tamiya kit with additional photo-etched parts from the Aber set. The crane on it is a resin model from the Caliber 35 company. The model of the semitrailer was also made of resin from the Cromwell Models set.

The half-track Sd.Kfz.9 vehicle was designed as an artillery tractor and was the largest of this German artillery tractors. It was also used in repair troops as an a tank recovery vehicle. The Sd.Kfz.9 was perfect for towing damaged heavy tanks and other heavy vehicles from the battlefield. The Sd.Kfz.9 vehicle was produced in 1939-1945. About 2,500 copies were produced during this time.

The tractor was powered by a 12-cylinder, 10,838 liters gasoline V-engine of 270 HP (201 kW).


Some technical data:

  • Length: 8.32 m (27.3 ft),
  • Width: 2.60 m (8.53 ft),
  • Height: 2.85 m (9.35 ft),
  • Mass: 19,500 kg (42,990 lb),
  • Max speed: 50 km/h (31 mph),
  • Fuel tank capacity: 290 l (UK-63.8 gal, USA-76.61 gal),
  • Range on the road: 260 km (162 mi),
  • Off-road range: 100 km (62.1 mi).

Sources:

  • https://pl.wikipedia.org/wiki/Sd.Kfz.9
  • https://en.wikipedia.org/wiki/Sd.Kfz._9

5 Aug. 2022

Modeller: Artur Stańczyk

Photographer: Ender
